A Quick Drawing & Photo Guide to Building Architectural Styles

After inspecting the foundation hidden below that structure we named this building "country-collapsing style". We left our beemer safely out of reach of this country-collapsing structure.

Readers should see the additional photo and drawing guides to building architectural styles in the links listed at page left, and also see ARCHITECTURE, STYLE, & Building Age included in our series of detailed articles: AGE of a BUILDING - how to determine as well as individual building component links at page left.

Below we provide a table of building architectural styles with links to drawings and photographs illustrating each. Additional examples of architectural styles are at the links shown below and detailed in more articles listed at page left:
ARCHITECTURE & BUILDING COMPONENT ID

Suffolk Resolves House Daniel Vose Milton MA (C) Daniel Friedman

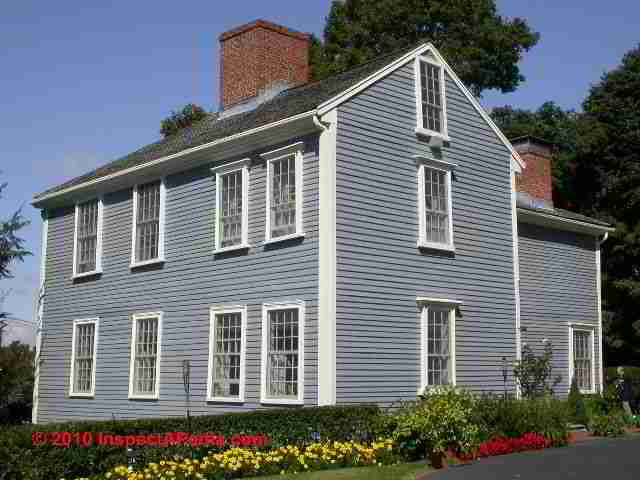

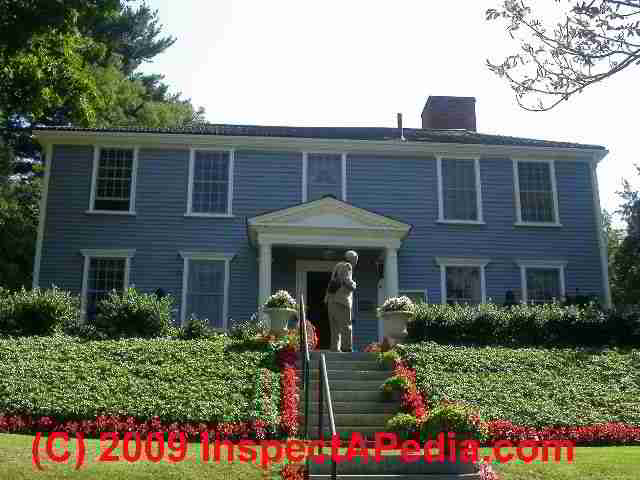

As the Georgian style Daniel Vose house (today called the Suffolk Resolves house) (1774) shows, in actual practice the architecture of even important, historic homes may be complicated than the archetype illustrations of architectural types below.

The Suffolk Resolves house was actually joined from two earlier homes, and later completely relocated to its present location in Milton MA. Here is another view of this home from the rear right. Details including photographs of the home cut apart and being relocated are in Milton Architecture.

The illustrations of building architectural types shown below are provided courtesy of Carson Dunlop Associates, a regular contributor to InspectAPedia.com.

Names of the architectural styles below may include a live link to additional photo examples of each style.

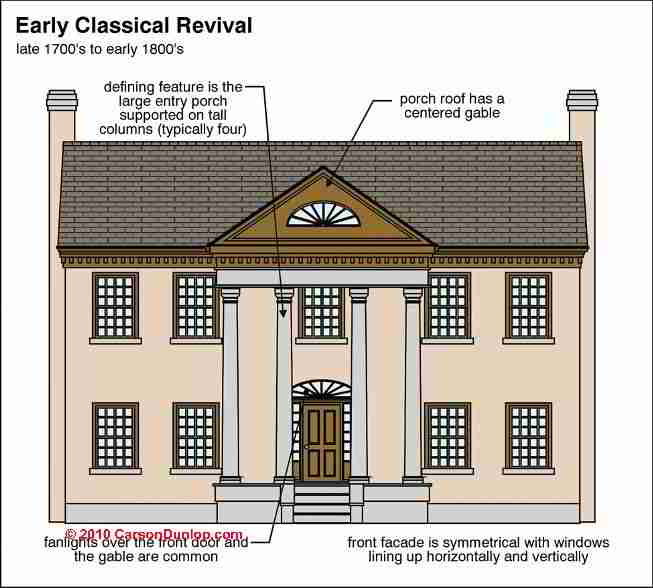

Early Classic Revival Architecture (C) Carson Dunlop Associates

Greek Revival Architecture (C) Carson Dunlop Associates

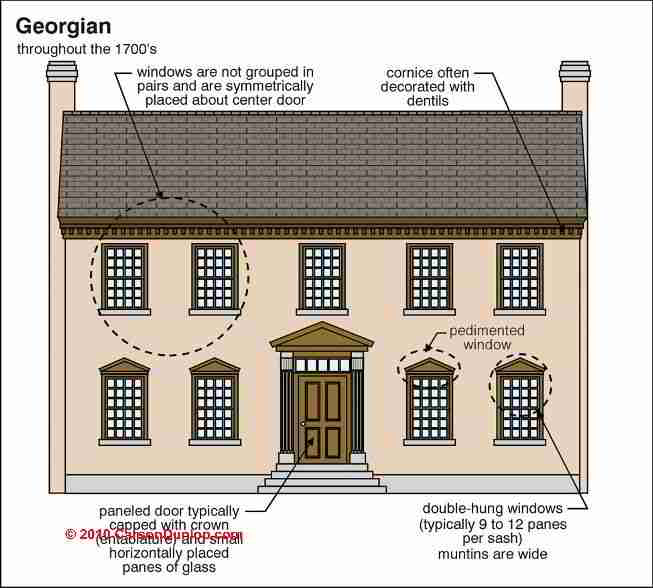

Georgian Architecture (C) Carson Dunlop Associates

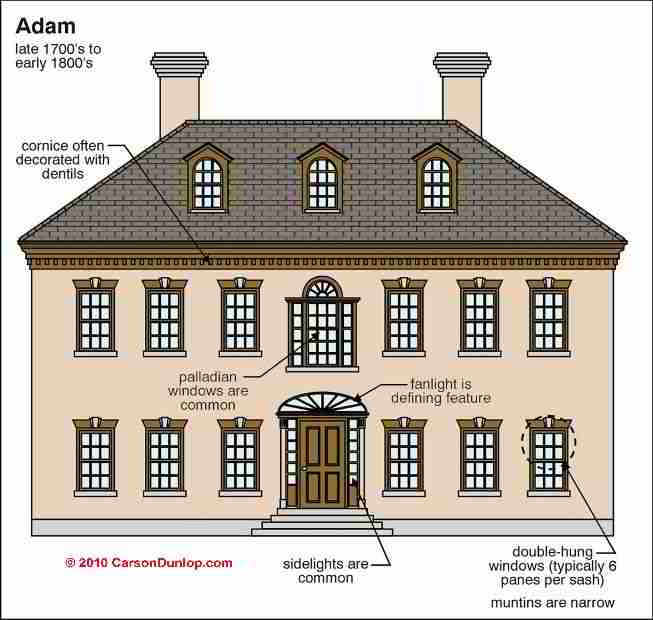

Adam Architecture (C) Carson Dunlop Associates

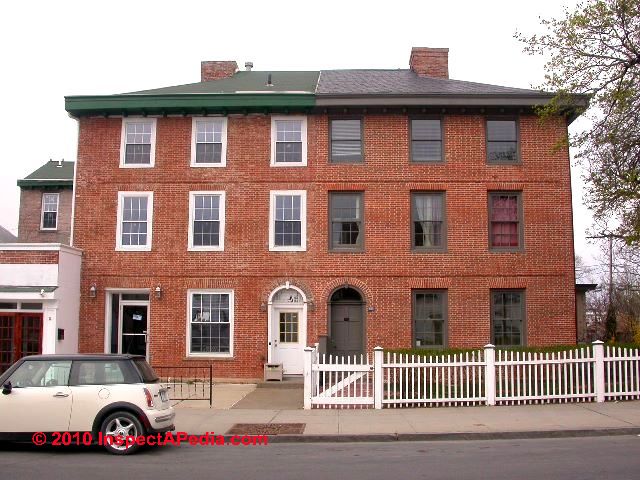

Left to right (click to enlarge) Early Classical Revival, Greek Revival, Georgian, Adams Style (First Bank of Hudson, Hudson NY 1809) Architecture

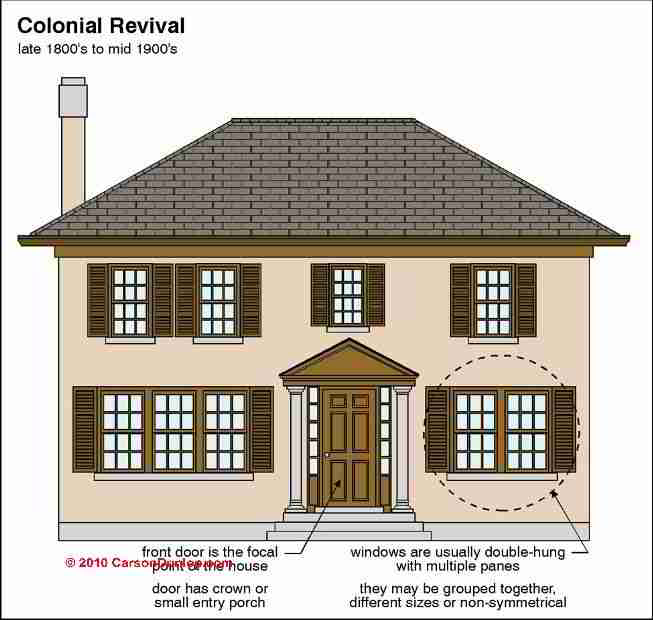

Colonial Revival Architecture (C) Carson Dunlop Associates

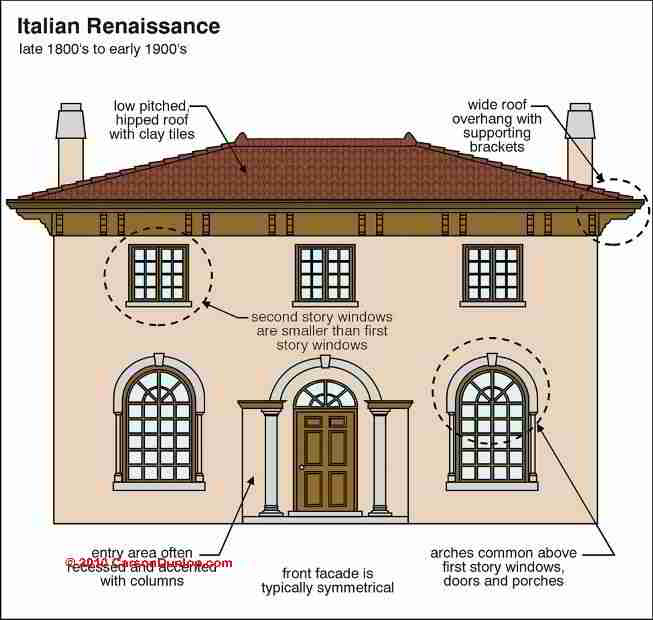

Itallian Renaissance Architecture (C) Carson Dunlop Associates

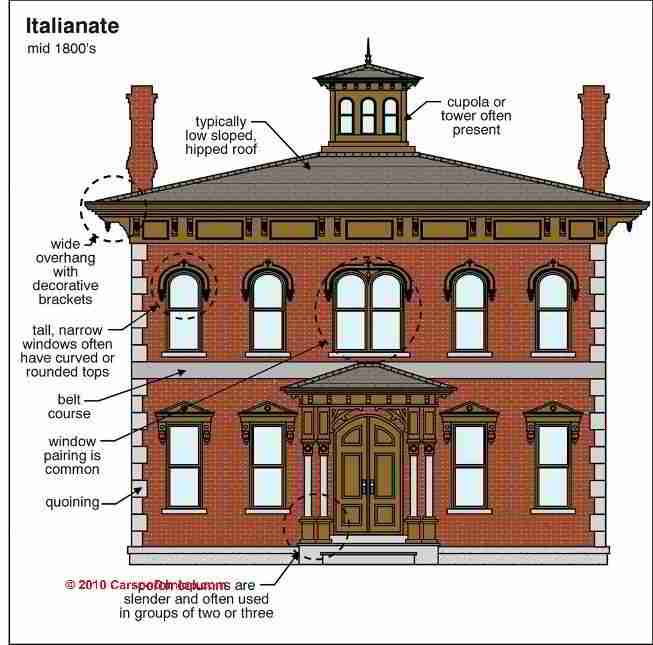

Italianate Architecture (C) Carson Dunlop Associates

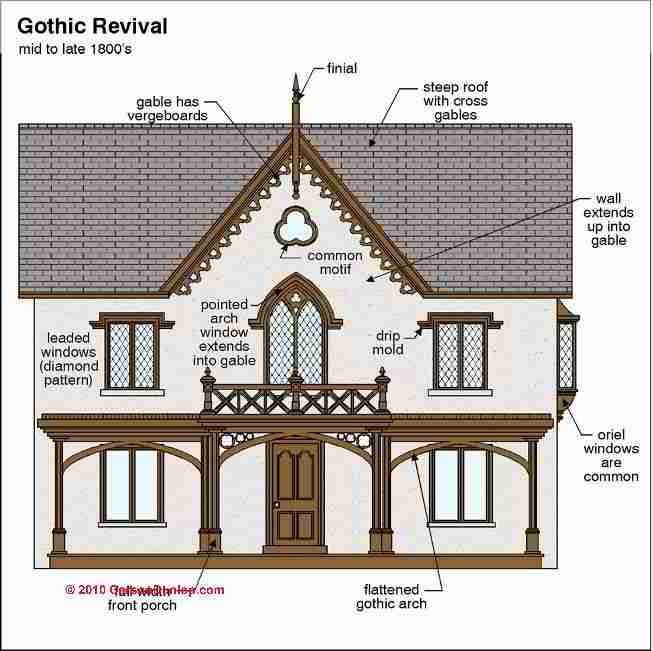

Gothic Revival Architecture (C) Carson Dunlop Associates

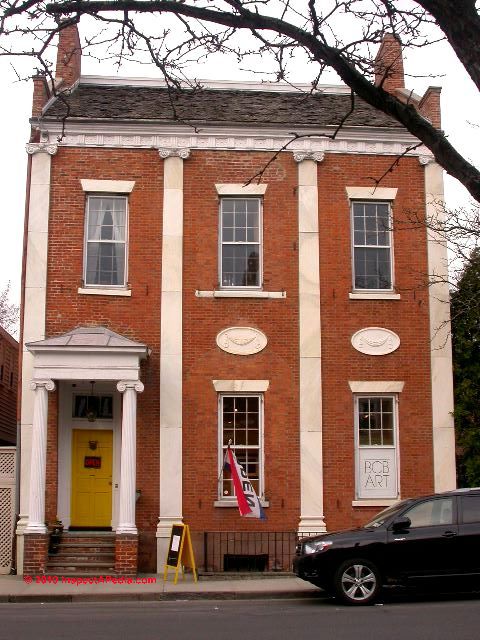

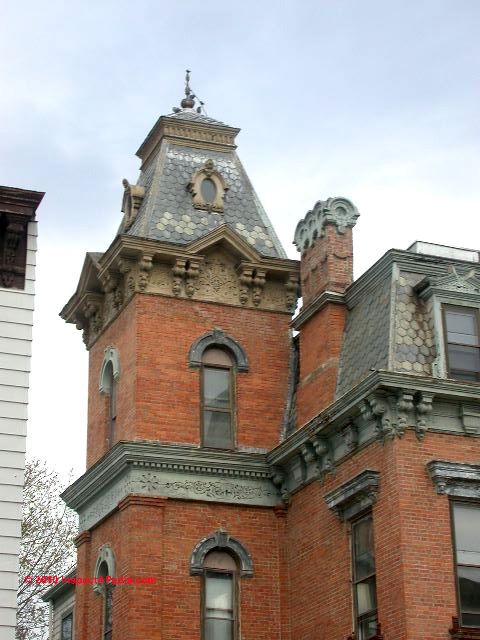

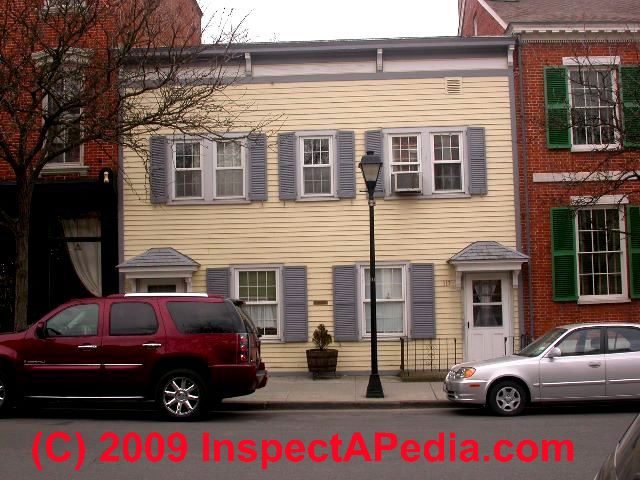

Left to right (click to enlarge) Colonial Revival, Italian Renaissance (remuddled, Hudson NY), Italianate (Hudson NY), Gothic Revival (Justin Morrill Smith Homestead, VT 1840) style architecture. Also see this simple Colonial style architecture (Hudson NY, described as "early Victorian" 1860).

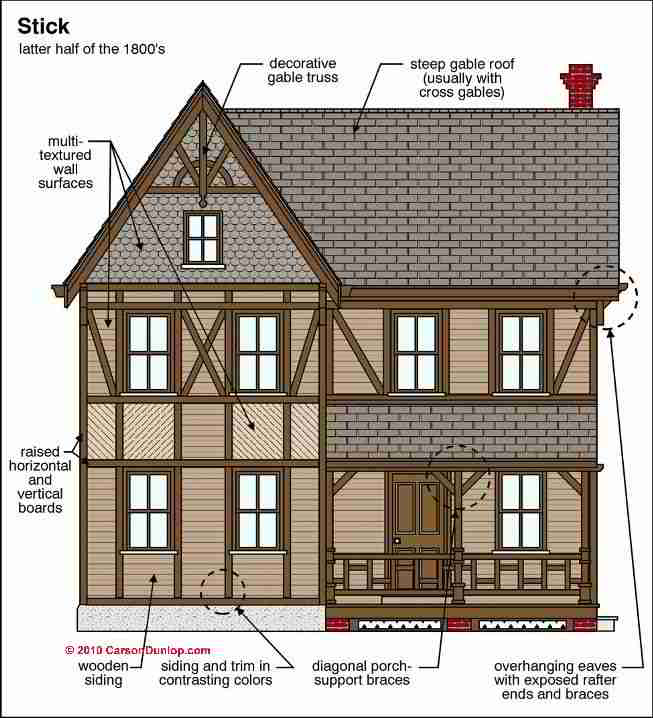

Stick Style Architecture (C) Carson Dunlop Associates

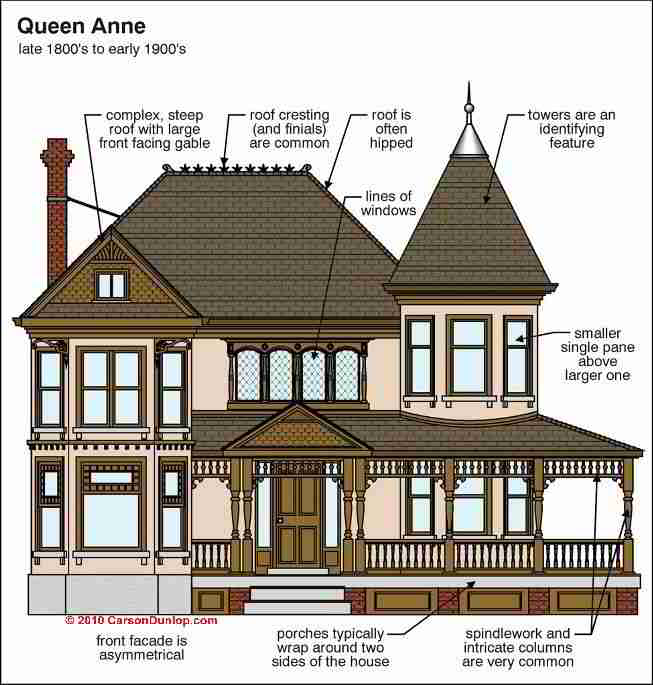

Queen Anne Style Architecture (C) Carson Dunlop Associates

Queen Anne Architecture (C) Carson Dunlop Associates

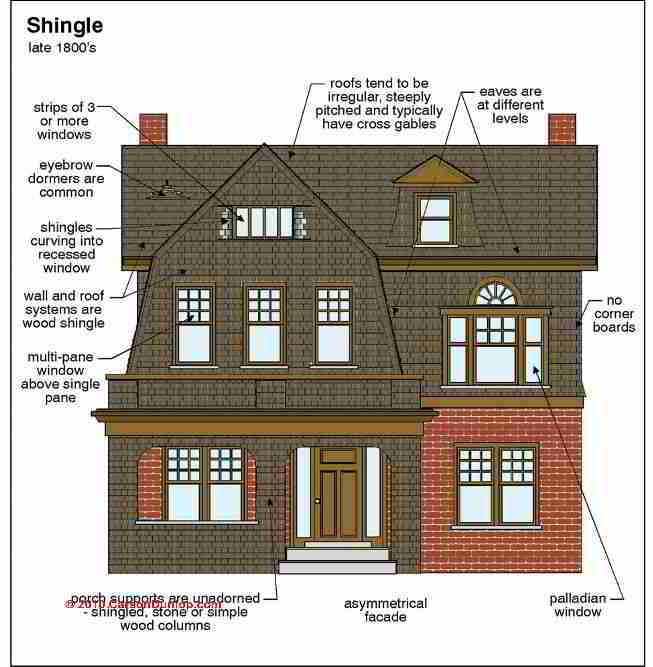

Shingle Style Architecture (C) Carson Dunlop Associates

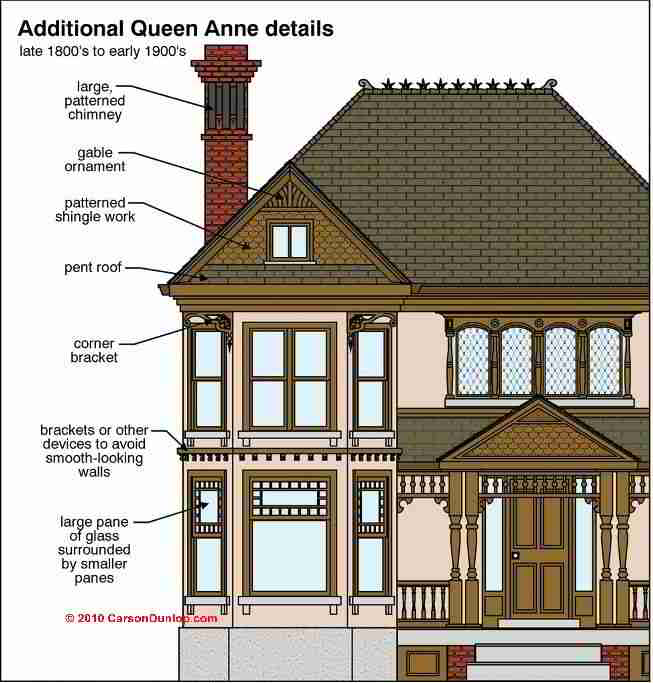

Left to right (click to enlarge) Stick style architecture, Queen Anne, Additional Queen Anne details, Shingle style architecture.

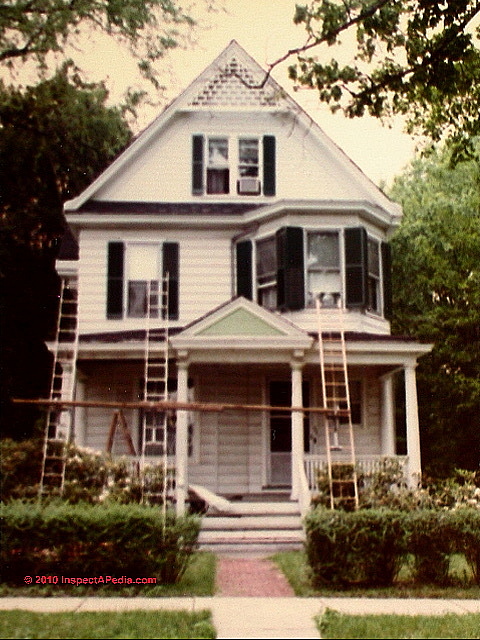

Also see this Neo-Victorian home,1900 Poughkeepsie, NY, and this Mid-Victorian cast-iron panels home, 1875, Hudson NY.

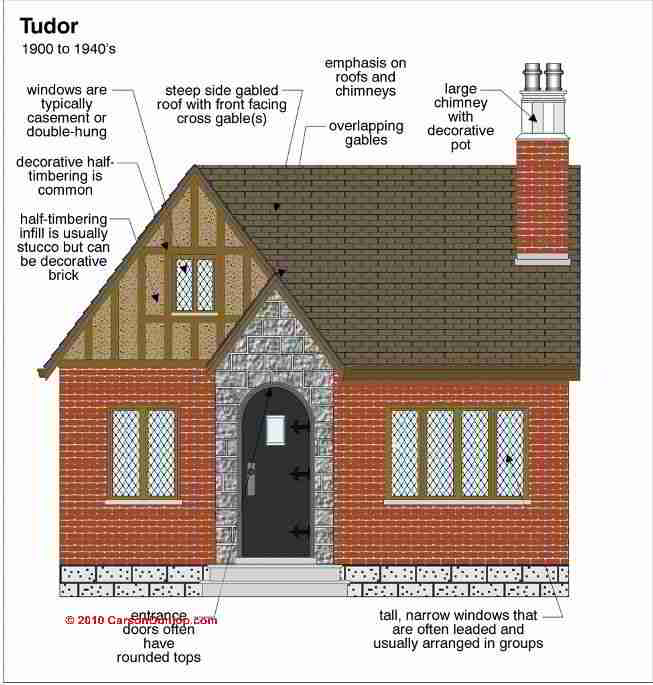

Tudor Style Architecture (C) Carson Dunlop Associates

Prarie School Architecture (C) Carson Dunlop Associates

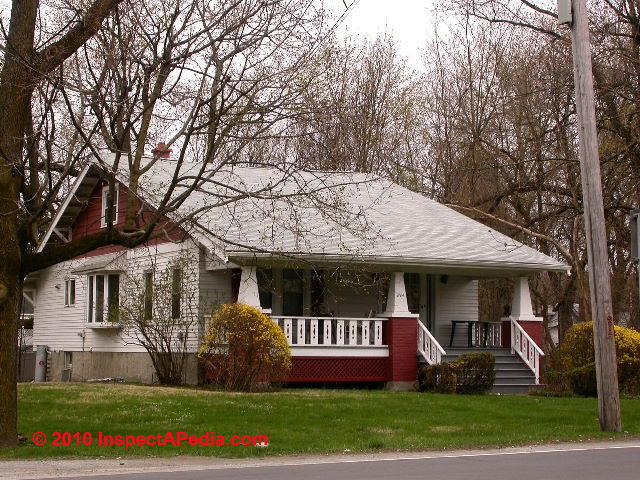

Craftsman Architecture (C) Carson Dunlop Associates

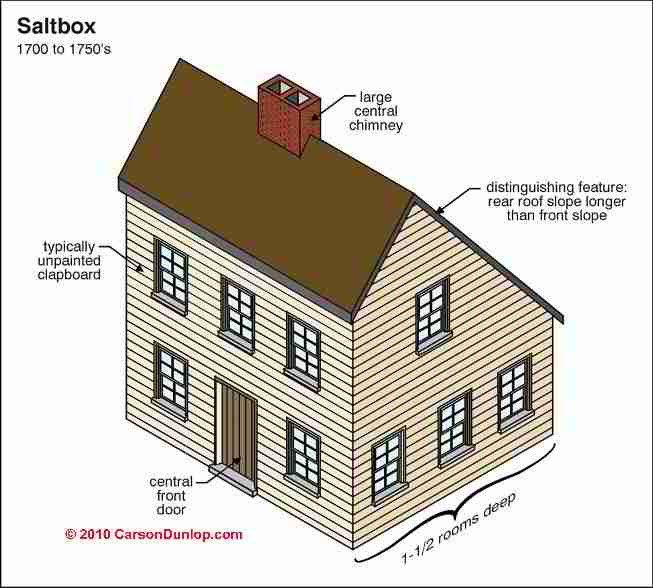

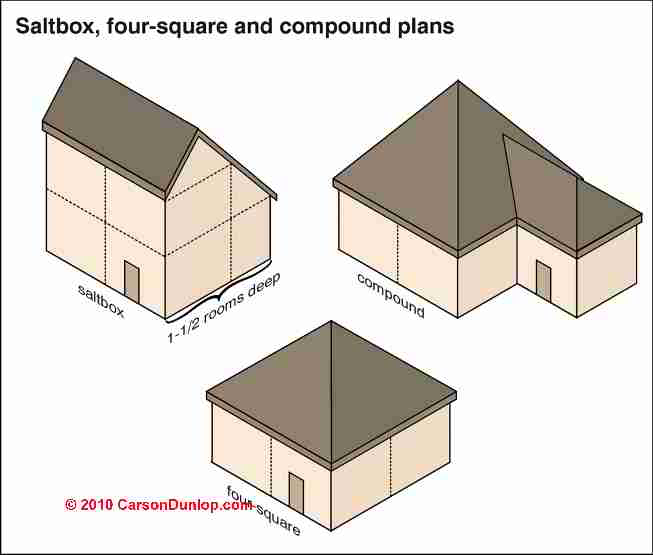

Salt Box Architecture (C) Carson Dunlop Associates

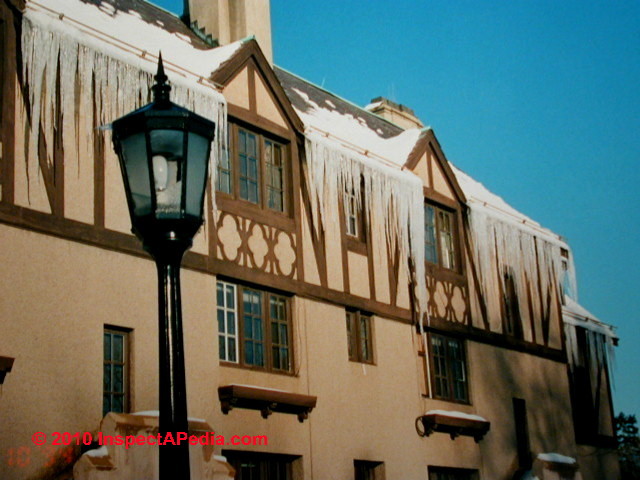

Left to right (click to enlarge) Tudor style (also see Tudor revival, Williams Faculty Apartments, Vassar College), Prairie School (Vassar campus), Craftsman style (Poughkeepsie NY) & Salt Box design architecture.

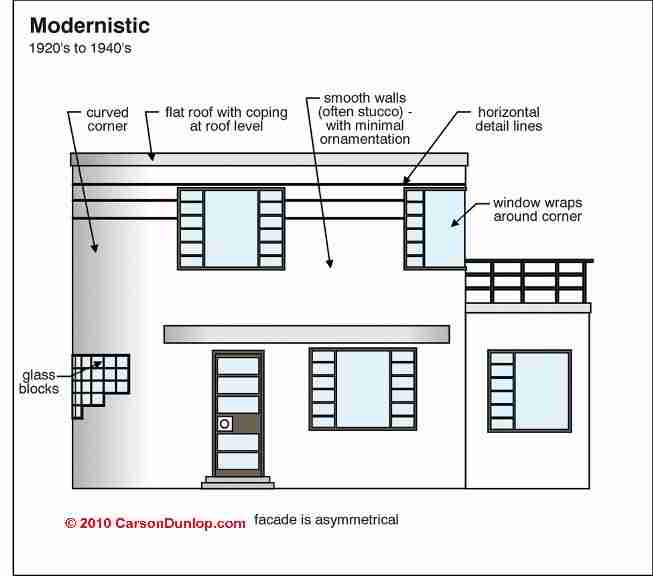

Modernistic Style Architecture (C) Carson Dunlop Associates

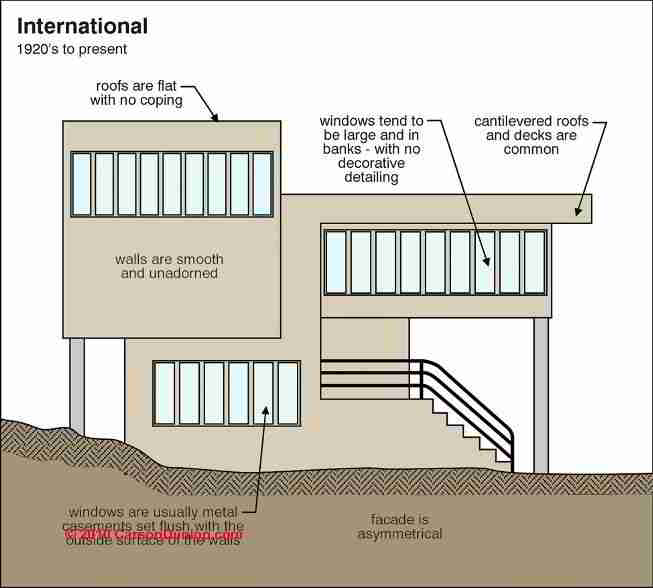

International School Architecture (C) Carson Dunlop Associates

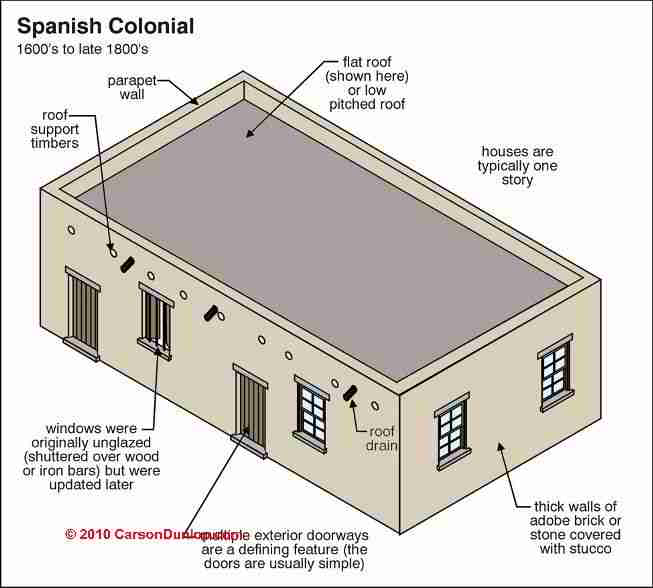

Spanish Colonial Architecture (C) Carson Dunlop Associates

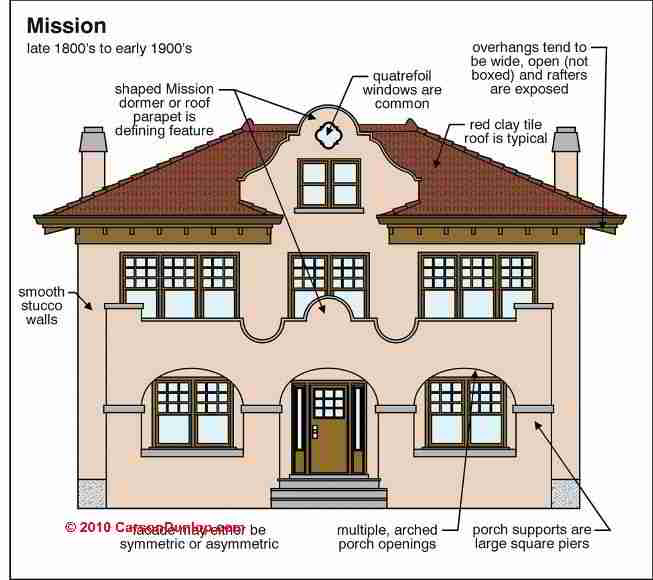

Mission Architecture (C) Carson Dunlop Associates

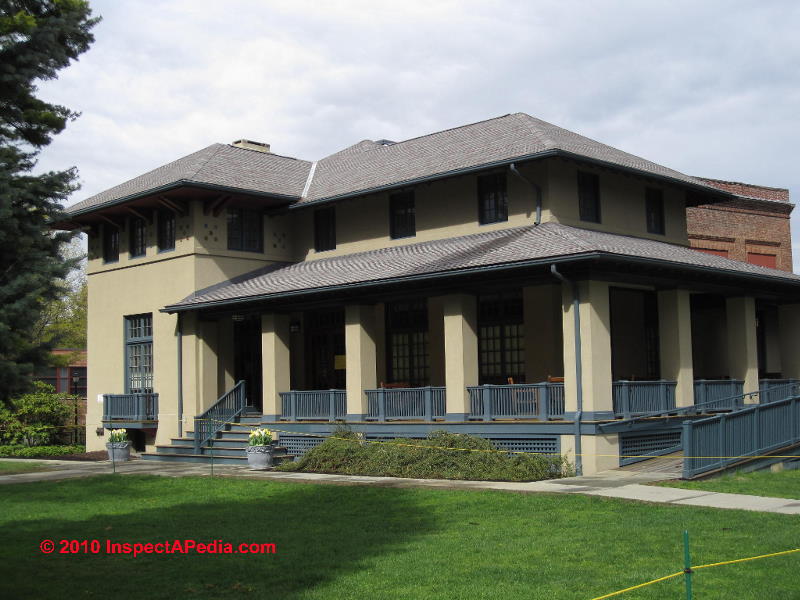

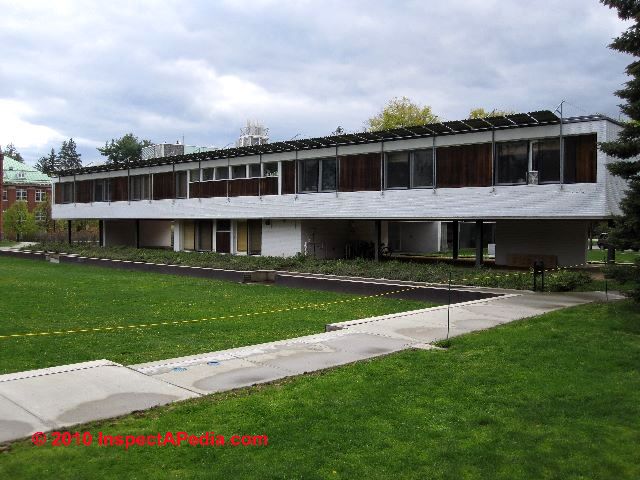

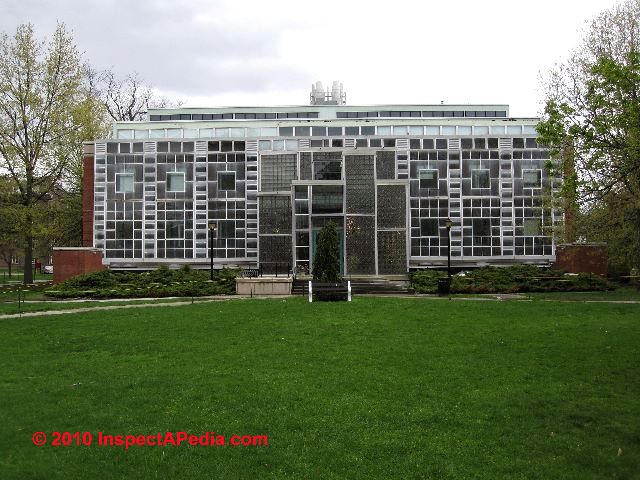

Left to right (click to enlarge) Modernistic architectural style (example: Vassar College campus), International style architecture (example: Seeley G. Mudd Chemistry Building, Perry Dean Rogers, architect, Vassar College), Spanish Colonial, Mission architectural styles.

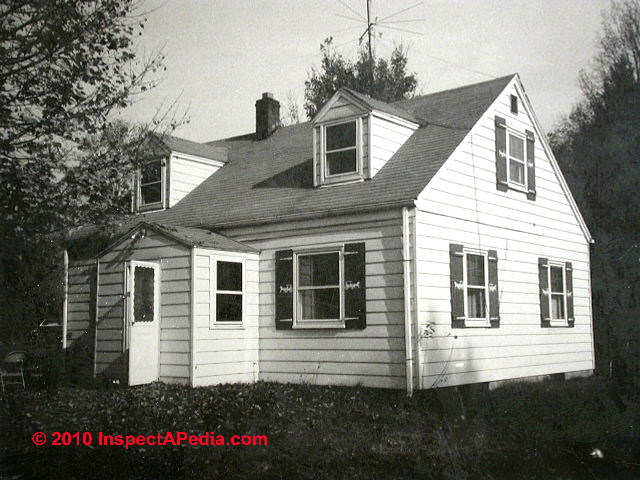

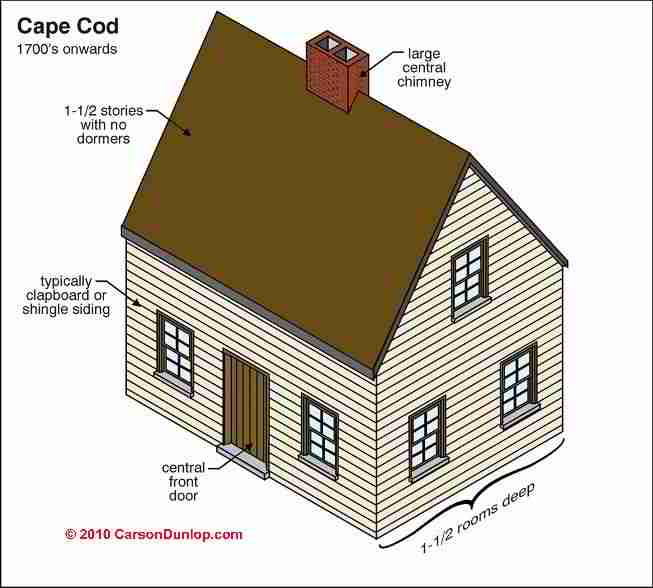

Cape Cod Architecture (C) Carson Dunlop Associates

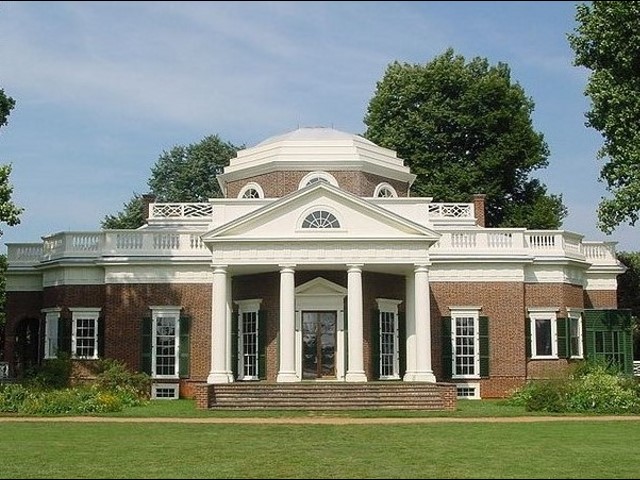

Palladian architecture (C) Daniel Friedman

Tudor revival architecture Williams Apartments (C) Daniel Friedman

Left to right (click to enlarge) Cape Cod (Poughkeepsie NY), Saltbox architectural style, Palladian architectural style (Monticello, VA), Tudor Revival (Williams Faculty Apartments, Vassar College, Poughkeepsie, NY)

See Roofs & Architectural Styles - Photo Guide for a table of roof shapes, pitches, and associated architectural styles

Also see this little guide sketch to architectural styles that includes more examples some of the architectural styles above and adds the Mansardic style and see Chimney Architectural Styles - Photo Guide for additional details.

At Field Guides to North American House Architecture we list (and you can buy at Amazon) books we have found particularly helpful in identifying architectural styles, including: as this more extensive list of architectural styles: Folk Houses, Native American Houses (U.S.), Pre-Railroad houses, National Architectural Styles (U.S.), Colonial Houses (1600-1820), Postmedieval English, Dutch Colonial, French Colonial, Spanish Colonial, Georgian, Adam, Early Classical Revival, Romantic Houses (1820-1880), Greek Revival style architecture, Gothic Revival style architecture, Italianate style architecture, Exotic Revivals style architecture, Octagon houses, Victorian style architecture Houses (1860-1900), Second Empire style architecture, Stick style architecture, Queen Anne style architecture, Shingle style architecture, Richardsonian Romanesque style architecture, Folk Victorian style architecture, Eclectic Houses (1880-1940), Anglo-American style architecture, English style architecture, and French Period Houses, Colonial Revival style architecture, Neoclassical style architecture, Tudor style architecture, Chateauesque style architecture, Beaux Arts style architecture, French Eclectic style architecture, Mediterranean Period Houses style architecture, Italian Renaissance style architecture, Mission style architecture, Spanish Eclectic style architecture, Monterey style architecture, Pueblo Revival style architecture, Modern Houses including Prairie style architecture, Craftsman style architecture, Modernistic style architecture, International style architecture, and American Houses Since 1940: Modern style architecture & Neoeclectic style architecture as well as unusual houses such as Mongolian Cloud (photo, Kuehn) houses and Underground Houses (photo, Roy).
