Electrical Circuit Identification & Labeling Tips for Homeowners

How to Make a Map of the Electrical Circuits in a Building

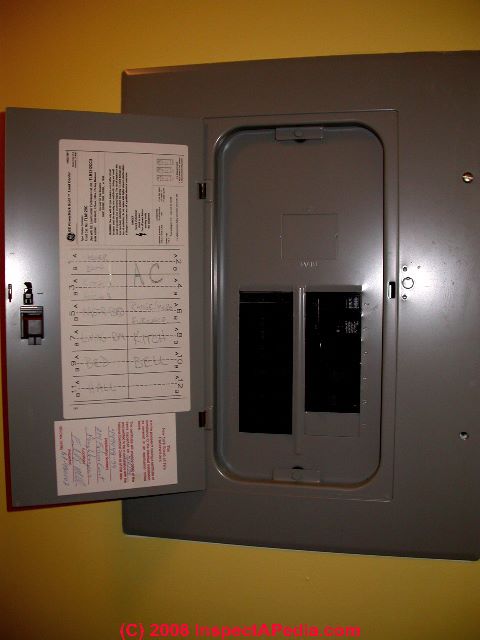

Each circuit breaker or fuse on your electrical service panel in a building should be identified to show the area of the building whose circuits it protects. This can be done by putting adhesive-backed paper or plastic stickers next to each circuit breaker or fuse. Or you can make a sketch of the panel layout with circuits identified, and attach it to or keep it near the service panel. In addition to this, however, a map of your house showing exactly which lights, outlets, appliances, etc., are on each circuit can be a great help in planning electrical work and in tracking down troubles.

If the building is a new home, the builder or electrical contractor may be able to supply you with a copy of his wiring diagram. If you cannot get a circuit map ready-made, you can make your own. The map you make will probably provide a few surprises. Circuits are often split between rooms-and outlets within a room are split between circuits-in ways you could never have guessed.

Prepare a Building Floor Plan

To start with, draw a floor plan of the building whose circuits you need to trace. Make your floor plan drawing floor-by-floor or room-by-room, whichever is more convenient, but be sure to include every area that has electric service. Include porches, garages, outbuildings, etc. Use some system of symbols to identify every fixture, wall outlet, and switch. Don't forget outside outlets, entrance lights, outdoor floodlights, etc.

Find the Main Electrical Panel and Find any Sub Panels

Electrical Emergency Response: One of the most important safety measures to take in a building is to make sure that the adult building occupants know where to shut off electrical power in an emergency. If sparks are flying from a toaster or someone is being shocked, we don't want to waste time looking for the electrical panel, nor do we want to waste time figuring out which breaker or fuse to turn off.

In an electrical emergency, go to the main electrical shutoff switch and turn it off. If touching the main switch is unsafe, for example because the floor is wet, you may use a dry non-conductive wooden handle such as a broom to push off or down the power switch.

Find and Label All Main Electrical Shutoff Switches First

The best electrical practice is for a building to have a single, easily accessed, plainly-marked main electrical shutoff switch. But some buildings, especially older ones, may have no single main power shutoff, and may be powered by multiple electrical panels.

If the main electrical panel serving a building has more than six switches and has no main shutoff switch, we recommend that one be installed.

All main electrical switches (if more than one is present) must be labeled "MAIN" in any building.

In our photo at left the main switch is plainly visible at the top of the electrical panel; an owner has added an arrow and a sign which helped assure that asian occupants of the building would also understand how to turn off all electrical power in an emergency.

How to Find Remote Fuse or Circuit Breaker Panels in a Building

What if you don't know if there are any remote electrical panels or not in a building? Sub panels should be easily found and identified but often they're hidden away such as in this odd panel photo courtesy of Timothy Hemm.

Most simple buildings receive their electrical power through a single electric meter from which the electrical service enters a single main electrical panel.

If this is the case for your building, then if there are additional electrical sub-panels located throughout the building or in outbuildings, most likely each sub panel receives its electrical power from the main panel and there will be a switch in the main panel that controls power to the sub panel.

There are exceptions however: at some buildings electrical power may come from the electric meter into a single main building shutoff which in turn may feed a metal chase or tray to which multiple electrical panels have been connected. Often these multiple panels are adjacent to one another, but it's certainly possible for an electrical panel to be found in remote spots such as attics, basements, and even hidden in places where an electrical panel should not be located such as in tiny closets or under sinks.

Here are some tips that home inspectors use to guess that a remote electrical panel is present and then to go looking for it:

If the building is small and not complex it often has only a single electrical meter and single main electrical panel
Multiple electrical meters: if the building has multiple electrical meters on its exterior, it's likely that each of these is feeding a main electrical panel, possibly each through a separate main electrical shutoff switch.

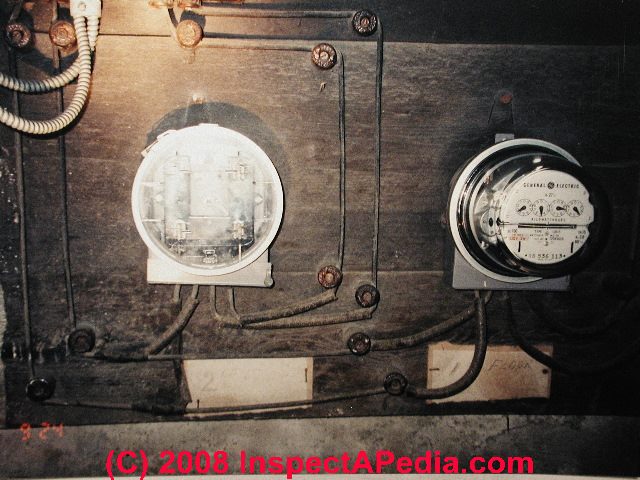

In our photo at left one of the electrical meters has been pulled (shutting off power but possibly leaving dangerous live contacts exposed) and all of this electrical installation, which supports knob and tube electrical wiring, is obsolete. Still, two meters: look for two main panels or two main switches.
Multiple main shutoff switches: if inside the building where electrical power enters you find multiple switches or boxes labeled "MAIN" then you'll need to find the electrical panels that each of these switches controls.

Existing electrical panel labels: if the main electrical panel already has some labels by fuses or switches (as it should) you may see labels indicating "Sub", "Sub Panel", or naming another building area that was perhaps an addition like "Den" or naming an outbuilding like "Garage".

These are areas that may have their own sub panel.

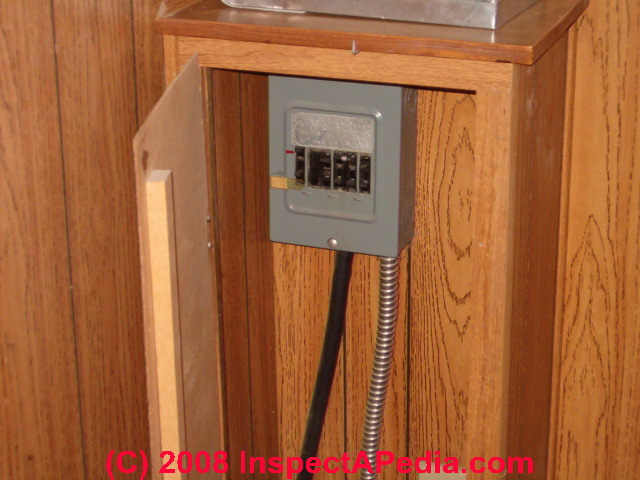

In our photo at left, contributed by a reader, Cheri Jarrett, the red and green double-pole circuit breakers are labeled as "Air Cond" and "Dryer". If these breakers are still in use for the appliances that have been indicated, they won't be powering sub panels. Since this is a Zinsco/Sylvania electrical panel we'd recommend that it be replaced for safety.

Double pole sub panel switches in the main panel: If the main electrical panel contains 240V double pole circuit breakers then the process of determining what each of these switches is for will tell us whether or not there is probably a remote sub panel.

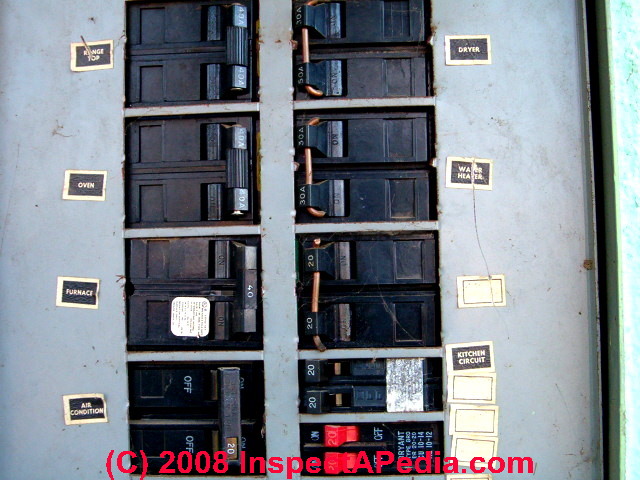

Our photo courtesy of Timm Hemm shows that the common trip ties on some of these double pole breakers are home-made (copper wires at right) and are unsafe.

If we saw a double pole breaker in this panel that was not powering an appliance or similar circuit we'd need to check to see if it was powering a sub panel.

Some common devices that use a two-pole 240 V switch in electrical panels include:

electric water heater (typically a double pole 40A or 50A breaker)
electric clothes dryer (typically a double pole 40A breaker)
central air conditioning & heat pumps (typically a double pole breaker ranging from 30A to 50A) )
electric oven or stove (typically a double pole 40A or 50A breaker)
electric heaters and backup electric heat for heat pump systems
some private well pumps (typically a double pole 20A breaker)
multiwire branch circuits (the double pole breaker will be 15A or 20A)
electrical sub panels (may be at any amperage, usually double pole, often 30-A to 60A or even larger)

Large diameter wires leaving the electrical panel: since most building lighting and receptacle circuits are wired with #14 or #12 gauge wires (15Amp or 20Amp circuits where copper wire is used), if at the electrical panel you see one or more wires that are thicker than their sisters, these may be higher-amp circuits fed by a higher-amp breaker or fuse and possibly connecting to a sub panel.
Outbuildings: if a property has a detached garage, shop, pool cabana, or other structure which is provided inside with one or more electrical circuits, it's likely that that building is wired from a sub panel located there and fed from the main panel. You may see overhead wires to an outbuilding, or you may see electrical conduit leaving the outside of the main building and appearing at the exterior of the remote building. If you see electrical wires or electrical conduit entering a building, look inside the building close to the area where you saw the wire or conduit entering, as that's where you're most likely to find an electrical sub panel.
Building Additions: often when a second floor is added, an attic is converted to living space, or a wing or even a single large room is added to a building the electrician finds it convenient and economical to run a single heavy electrical wire from the main panel to the addition, and to pull the local circuits in the addition all out of a sub panel located there.

Finding Special Power Switches for Major Equipment

In many buildings, for safety as well as service convenience, certain equipment is required to have its own shutoff switch. You should find an electrical shutoff outside at the central air conditioning system compressor/condenser unit, for example, and you may find a separate electrical shutoff switch at an electric water heater.

These shutoff switches may be little electrical sub panels, but normally each of them is simply serving as a local electrical switch - that is, they should not be also powering other electrical circuits.

We don't count these switches as "sub panels" but rather as switches, and the purpose of each will be obvious since it's next to and is connected to the device it serves.

But if you see that someone has added smaller diameter wires coming out of one of these switches, say to add a local electrical outlet or lighting circuit, there's a good chance that the addition is improper and un-safe. That's because we don't want to power a 15-Amp 14-gauge wire receptacle circuit out of a fuse or circuit breaker box that permits 40 or 50 Amps of current to flow (intended for a water heater or electric range). The result could be a fire. If you suspect that a high-amperage power switch such as we describe has been used to power other electrical circuits you should ask your electrician to check it out promptly.

List the Circuit Breakers or Fuses in Each Electrical Panel

Then number each circuit breaker or fuse on your service panel. If the electrical power in your building is distributed by more than one electrical panel or fuse box, that is, if electrical power is distributed by both a main panel and one or more sub-panels, you'll need to follow this procedure at each electrical panel.

Many homes are served by a single main electrical panel, in which case this task is simple. Find the main electrical panel, open its hinged cover, and look inside at the fuses or circuit breakers.

Most electrical panels have a number embossed on the cover plate next to each circuit breaker. Fuse panels may lack this detail. If your electrical panel face does not have a number by each breaker or fuse, or if they are hard to read, you can use a fine-tipped felt-tipped marker to simply write an identifying number neatly next to each breaker or fuse.

Turn on Lights in the Building

Next, turn on all the ceiling and wall fixtures and lamps in your house. It is not necessary to turn on major appliances at this time.

Turn Off Individual Circuit Breakers or Fuses, One at a Time to Identify Lighting Circuits

The procedure is to turn off each circuit breaker or remove each fuse individually. Then determine which lights are off. Mark the number of the circuit breaker or fuse just turned off or removed next to the fixture and switch symbol on your diagram.

How to Map Electrical Receptacle (Wall Outlet) Circuits

Next check all the wall outlets in the rooms in which lights went out. Plug a small lamp or work light in each outlet. If the lamp does not light, mark the number of the circuit breaker or fuse next to the outlet symbol on your diagram.

Repeat the procedure for each circuit breaker or fuse on your panel. When you finish, every symbol on your floor plan should have a circuit number next to it. If any symbol has been missed, recheck the area by turning on the light or plugging your work light into the outlet. Next, turn off, one at a time, each circuit that your diagram shows on nearby fixtures and outlets until you find the one that applies.

Identifying Appliance Circuits

You will find that some of the circuit breakers you have turned off or fuses you have removed have had no effect on lights or outlets.

These are circuit breakers or fuses that protect large appliance circuits (such as a refrigerator or dishwasher).

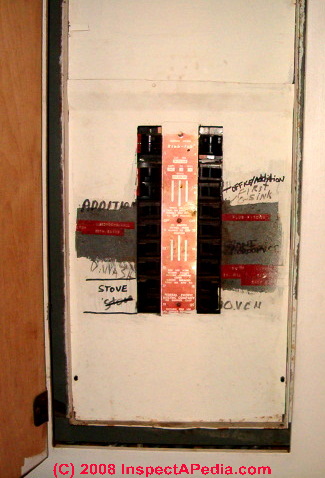

Tim Hemm's photo at left shows a poorly labeled electrical panel, and an unsafe-brand (FPE Stab-Lok) that should be replaced. But we can see that someone has thoughtfully labeled some of the circuit breakers as Oven and Addition.

The "Addition" breaker may power a sub panel. But this electrical panel should be replaced, as you can learn in our separate article about Federal Pacific Electric Stab-Lok panels.

Turn off these remaining circuit breakers or remove these fuses one at a time and check your appliances to find out which one does not work.

Remember that furnaces and air conditioners may appear to be off because of temperature-control settings.

Complete the Identifying Notes on the Circuit Map

Be sure to note on your diagram any circuit uses that are not covered by symbols and may be useful to you. For example, two circuit breakers or fuses are used in electric range circuits. Note on your diagrams which device protects the oven and which protects the surface burners. When you finish your diagram, store it near your service panel in a protective envelope.

Tip: You can save some time and frustration by using a small plug in radio instead of a work light to check the wall outlets. Plug the radio into the outlet you want to check. Tune to a strong station and turn the volume up. Back at the service panel, turn off the circuit breakers or remove fuses one by one. When the sound goes off, you have found the circuit.
