Examples & List of Indoor Fire Clearance Safety Hazards InspectAPedia®  -     What is a three-sided chimney? How can we spot a 3-sided chimney? Why is a three-sided chimney dangerous?

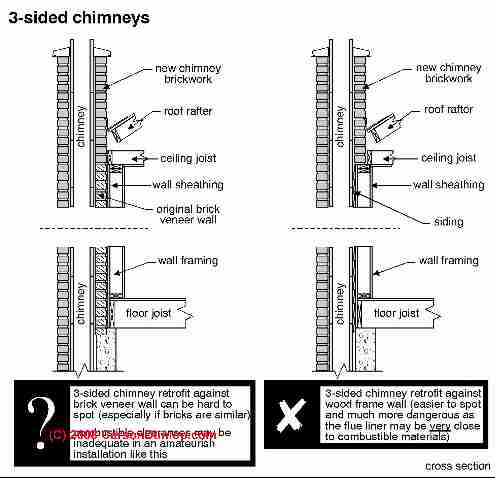

This article describes common indoor fire clearance safety hazards. Our page top sketch of a three-sided chimney is courtesy Carson Dunlop.

This website provides detailed suggestions describing how to perform a thorough visual inspection of chimneys for safety and other defects.

Chimney inspection methods and chimney repair methods are also discussed. As with most inspection and safety topics, this material may be incomplete.

As with most inspection and safety topics, this material may be incomplete. Contact Us by email to suggest content additions or corrections. © Copyright 2009 Daniel Friedman, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

Indoor Fire Clearance Safety Hazards

Here is a list of articles describing in more detail a variety of fire hazards that occur because of inadequate distance between a heating appliance, flue vent connector, chimney, or other building component and combustible materials.

Fire Clearances for several common types of manufactured chimneys are summarized at Fire Clearances for Metal Chimneys and just below are links to the specifications of each type of manufactured or metal chimney:

Class A Chimneys, MetalBestos™
Type B-Vents
Type L Vents
Triple-Wall Metal Fireplace Chimneys
Super Chimneys, 629 Chimneys
Connecting Metal Chimney Sections
Wood Framed Chimney Chases

Fire Clearances for Masonry Chimneys

Fire Clearances for Metal Chimneys

Fire Clearances, Single-Wall Metal Flues includes the following detailed articles
  Chimney Height & Clearance - a chimney that is too short can cause a roof fire
  Reduction in Fire Clearance - Heat Shields - to reduce the required fire clearance distance for a woodstove or other heating appliance or its flue vent connector
  Single Wall Metal Flues - Oil fired heaters - fire clearance requirements
  Single Wall Metal Pipe Flues - Gas heaters - fire clearance requirements - the distance to the nearest combustible surface
  Wood & Coal Stove Flues - fire clearance requirements - the distance to the nearest combustible surface
  Fire Clearance Safety Hazards, other - typical indoor fire clearance safety hazards listed with links to key articles

Fire stopping at Chimney Passage Through Floors explains the need for a block to natural chimneys that can occur in building walls, speeding the spread of a building fire

Flue Vent Connectors - Heating Boilers, Furnaces, etc - the flue vent connector is a metal pipe connecting a heating furnace, boiler, or other heating appliance to its chimney. Failure to respect the necessary distance between the flue vent connector and combustible surfaces is one of the most common fire hazards in buildings. See Indoor Chimney & Vent Connector Fire Clearances for details of this topic.

Holes in Masonry Chimneys often are not noticed by building owners who do not enter attics or attic knee wall spaces where an older masonry chimney, particularly a brick chimney, may have lost bricks, cracked, or moved, creating a serious fire hazard.

Three-Sided Chimneys - Three-sided chimneys - chimneys which do not provide full masonry thickness or fire protection around all sides of the chimney flue.

Wood Burning Boilers, Furnaces Fireplaces Stoves are often installed without a building permit and without safety inspections. Particularly when heating costs for conventional heating oil and gas are rising and high, these devices see extra service and may be run longer or hotter than usual in a home. The result is an increase in house fires where wood stoves, coal stoves, or fireplace inserts have been improperly installed or where the chimney has become creosote-laden and catches on fire.
