Spalling brick chimney near top (C) Daniel Friedman

Spalling Masonry Chimney Surfaces: Inspection, Diagnosis, Repair;
Causes of Leaks at Chimney Shoulders & Building Walls
InspectAPedia^® -

What causes spalling or loss of brick or masonry block surface material from a chimney?
Significance of chimney spalling on its exterior
Leaks at chimney shoulders damage building walls & interiors & invite insect pests & rot
Questions & answers about the causes and hazards of spalling, flaking, chipping (or cracking) of masonry flues.

Spalling damage on masonry chimneys: This article defines chimney spalling and describes the causes and significance of spalling on masonry chimney exteriors. Next we discuss the cause and prevention of leaks into building walls at the sloped shoulders of masonry chimneys.

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers nor with topics or services discussed at this website.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

Spalling Chimney Exterior Surfaces

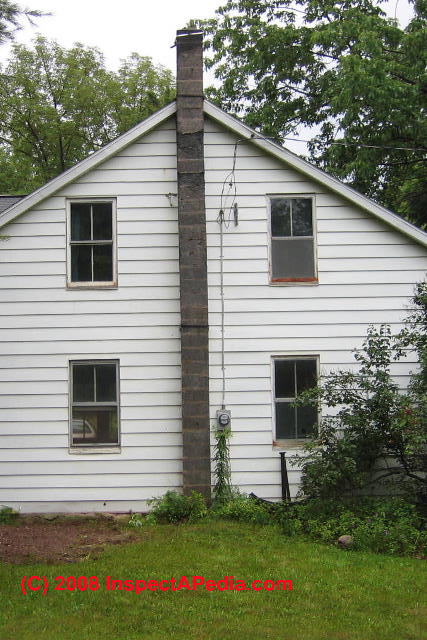

Spalling masonry block chimney (C) Daniel Friedman

Spalling describes the chipping off or loss of surface from a masonry material. Spalling can occur on a brick chimney such as the one shown at left, on masonry block chimneys, and on other masonry surfaces such as sidewalks or foundation walls.

Spalling can occur even in warm climates when a masonry product is soft, porous, improperly made, or improperly constructed. But spalling damage is often most severe in northern climates where a freeze-thaw cycle can cause frost to actually break and push off masonry fragments.

In our photo at above left you can see that leaks at the chimney top from an improperly sealed chimney crown have sent water into the chimney structure. Not only has the face broken away from some of the bricks, leaving their softer interior exposed to the weather, but also bricks have been dislocated and are being pushed off of the chimney.

We sometimes find bricks have been lost entirely from a chimney and we have to ask if the bricks fell into the flue (blocking it and making it unsafe). Our photo at above right shows a spalling concrete block chimney. The chimney is also "supported" by a metal strap tying it to the home.

A spalled chimney may also have a damaged and unsafe flue. A detailed inspection of the flue interior is in order. But usually spalling and frost damage occur only on the exterior portions of a chimney exposed to weather, not on the interior portions that run inside of a building.

Building Leaks at Chimney Shoulders

Chimney shoulder leaks (C) Daniel Friedman

Check the sloped shoulder of masonry chimneys that are shaped like the one in this photo. Where a fireplace has been built into a home, the chimney often widens to accommodate the fireplace.

The sloped chimney shoulder is difficult to flash successfully against the building siding. It becomes a common place for leaks.

Where the chimney shoulder is "stair stepped" such as we show here, there is also an extra risk of water or frost damage to the chimney, the flue, or the fireplace. A better installation includes a slate or concrete sloped cap on the chimney shoulder. When the chimney shoulder cap is installed it should also be sloped away from the house wall to reduce the chances of leaks into the wall itself.

we have often found rot and insect damage at building walls where a stair stepped chimney shoulder has leaked into the structure.
