This article describes chimney inspection procedures and critical chimney defects which can be observed from outdoors at ground level. We begin with the detection of chimney movement, its causes, its symptoms. These articles continue with other chimney defects that can be found by visual inspection from outdoors at ground level, then from an on-roof inspection, followed by indoor inspections and ending with chimney-flue interior inspections.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Chimney Inspection Procedures - Starting Outdoors
After reviewing this "ground level chimney inspection guide" readers should then review Chimney Inspection Outdoors at Rooftop which describes chimney defects which may be difficult or impossible to detect from a ground-level inspection. Readers interested in the outdoor portion of chimney inspections should review Foundation Support for Masonry Chimneys (below in this article) followed by the next article: Chimney Leaning, Separation, Movement. Also see CHIMNEY COLLAPSE Risks, Repairs.
Here is a list of some (not all) common chimney defects visible from a more distant view, perhaps at ground level. Later we detail chimney defects that can best be observed from roof-level access.
- Chimney movement: leaning, settling, bending, breaking, cracks, curving separation from the building, bad footing;
- Chimney height: too short, inadequate clearance above roof; Chimney height too tall without bracing; see Required Chimney Height
- Chimney exterior cracked, spalled, loose masonry components (bricks, blocks) or loose, missing mortar
- Chimney leaks: water leaking into the chimney interior or structure, such as efflorescence, frost cracking, spalling
- Chimney cap missing, chimney cap not draining; wrong type of cap for flue type or items being vented
- Chimney crown cracked, damaged, missing, leaking, or not properly sloped to drain off of the chimney top; no drip edge over chimney sides. Some experts including Al Carson call our "crown" the chimney cap. Sketch above showing the basic parts of a masonry chimney is courtesy of Carson Dunlop.
- Chimney type & usage: chimneys improperly shared among appliances, building rooms or building floors, or chimneys of the wrong type in use.
|
We describe these and other chimney defects in detail in the following sections of this article.
Chimney Separation from House, Settlement, Leaning, Movement, Cracking
A chimney which has settled and moved away from the building is almost certainly a serious safety hazard risking fire and flue gas leaks into the structure, and it is likely to require costly repairs or complete reconstruction. Details of how to see and evaluate chimney movement and separation are provided here.

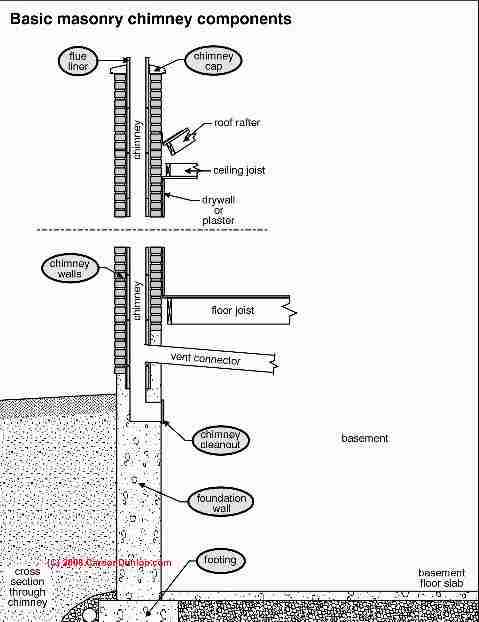

Foundation Support for Masonry Chimneys
A summary of the chimney footing problem is just below.
What happens if a chimney footing is missing or inadequate? Masonry chimneys represent a heavy concentrated load on the soil or
support structure. Therefore, proper footing support is critical and is generally
separated from the building footings except possibly at the exterior wall.
Some masonry chimneys are constructed with an inadequate footing, or no supporting footing whatsoever. Future settlement, movement, tipping, or separation of the chimney from the building is certainly likely in such installations.
We continue below with an explanation of the causes of chimney movement, followed by a demonstration of how we spot evidence that chimney movement has been ongoing. Other articles in this series outline most other chimney defects that can be found outdoors or indoors on buildings.
At Chimney Movement Causes we explain the common causes of chimney cracking, separation, leaning, tipping, or collapse.
At Chimney Movement - Ongoing vs Static we continue this article with a case reporting evidence of ongoing chimney movement, repeated repairs, and the need to remove and rebuild a large masonry chimney.
Other Chimney Defects Visible by Outdoor Ground-Level Inspection
Overgrown chimneys & flues - trim back vegetation

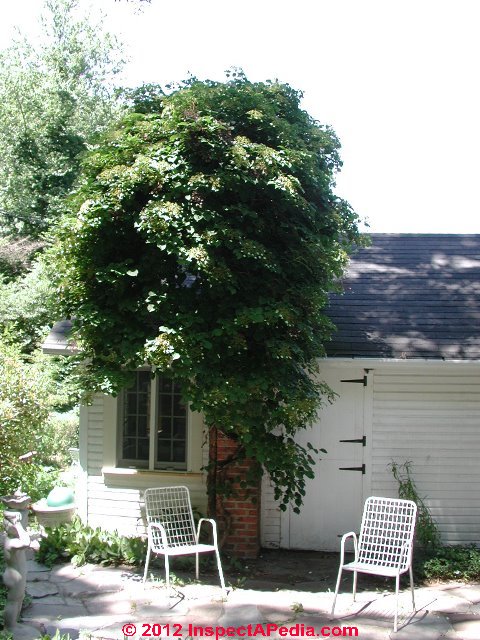

As you can certainly see from our photo (left), tree, shrubbery or vine growth close to or covering a chimney can be a serious hazard including risk of
- blocked flue, potentially fatal carbon monoxide poisoning
- house fire - when chimney sparks ignite dried vegetation
- chimney structural damage as vine growth holds moisture on or in the chimney surfaces
|
Bird or other animal nests in or on chimneys - fire & gas hazards

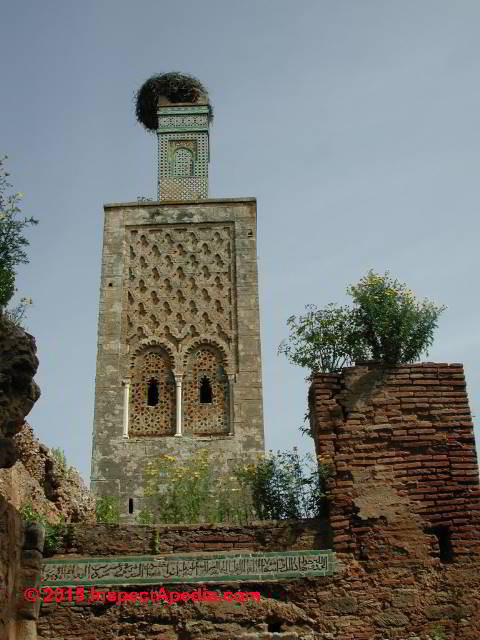

As you can certainly see from our photo (left), this chimney, located in Rabat, Morocco, serves as a home for a stork's nest. This chimney top is essentially totally blocked by highly-combustible material - a bird's nest.
Watch out: even in areas where storks are not common, other smaller birds, squirrels, and some other animals may make a smaller nest inside the chimney or its flue, presenting hazards of blocked flue, fire, and potentially fatal carbon monoxide poisoning. |
Risk of Hidden Chimney Damage - hybrid structures

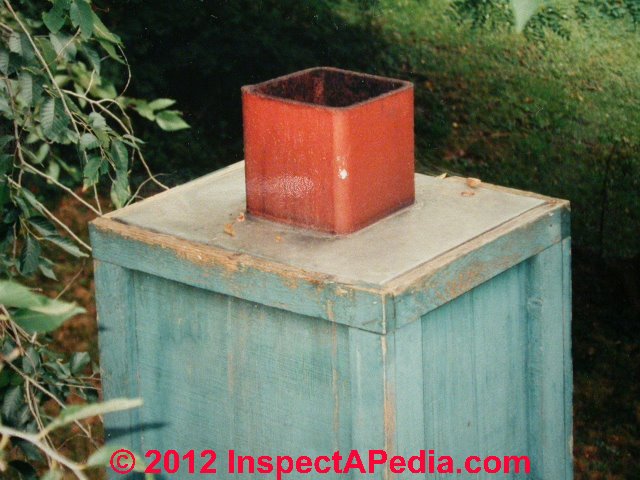

This chimney ... well we're not sure what the heck we've got here. We see a fired clay masonry flue tile projecting through a flat, leaky, too small, metal chimney cap surrounded by a wood and plywood structure.
We suspected that this was a masonry chimney that had suffered frost damage. The owner installed a new clay flue tile at the very chimney top and boxed in the masonry chimney to cover the frost-damaged chimney structure (the home was being sold). We've got a few concerns:
- a missing rain cap - risking hidden damage to flue, flue vent connectors, heating equipment below
- a defective leaky chimney cap or crown risking hidden damage to the chimney itself
- wood framed covering over a chimney of uncertain material and condition, possibly adding to the fire hazard
- a risk of hidden damage, unsafe flue, fire hazards, flue gas leak hazards
See CHIMNEY CAP & CROWN for definitions of chimney rain cap, chimney cap, chimney crown, and for more examples of chimney top defects that may be visible from the ground or from an on-roof inspection. |
Poorly-secured or poorly-supported factory-built chimneys risk collapse
As you can certainly see from our photo (left), this chimney is collapsing and is unsafe.
More about this chimney is found at Bracing for Metal Chimneys. |
...
