Chimney Leaning, Building Separation, Movement - Outdoors: Inspection, Diagnosis, Repair InspectAPedia®  -     Detailed Inspection & Photo Guide to leaning chimneys separating from the building Chimney diagnosis & repair advice

This article describes the detection and diagnosis of leaning or separating chimneys that have moved away from their building. Because a moving masonry chimney is likely to be unsafe, risking fire and carbon monoxide gas hazards, inspectors and building owners need to be alert for clues indicating that the chimney has moved or is experiencing ongoing movement. Expert chimney evaluation and repair are required.

The observation of evidence of movement in chimneys was introduced at Chimney Inspection Outdoors From Ground and continues here in detail. Readers should also be sure to review additional chimney moment and hazards discussed at Chimney Crack & Collapse Risks, Repairs. Also see Curved Brick Chimneys.

This website provides detailed suggestions describing how to perform a thorough visual inspection of chimneys for safety and other defects. Chimney inspection methods and chimney repair methods are also discussed. As with most inspection and safety topics, this material may be incomplete.

© Copyright 2009 Daniel Friedman, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

Chimney Leaning, Building Separation, Movement - Outdoors

The first photo at above left shows even from a distance that the chimney is curved, so we'd be alert for flue damage or for evidence that the chimney has separated from the building. Any movement in a masonry chimney risks damage to its interior liner and could be a safety concern.

A chimney may appear to curve away from the building at mid-height (above left) when it has not been properly secured to the building with lateral support.

Curved brick masonry chimneys may also be caused by a combination of lacking an interior flue liner and sulphation - a process we describe in detail at   Curved Brick Chimneys.

The second photo at above right shows a chimney to viewed from the ground, with our camera zoomed, and photographed during a rainstorm - not an unusual inspection conation. We can see some incomplete repairs to a brick at the chimney top and other spalled, loose bricks. This chimney needs further inspection and probably some repairs, as well as a rain cap.

The condition of the top exterior section of the chimney and the exposed flue liner will generally reveal the soundness of the chimney above the roof line. The exterior of the upper portion of a chimney can be seen from the ground level though not in detail.

Below we begin our photos and detailed investigation of evidence of chimneys that are cracked, leaning, or separated from their building. We identify clues indicating chimney movement, evaluate the extent of chimney movement, the probability of internal flue damage (an unsafe condition and a fire and carbon monoxide hazard), the probable cause of chimney separation and movement, and the chimney repairs that are needed.

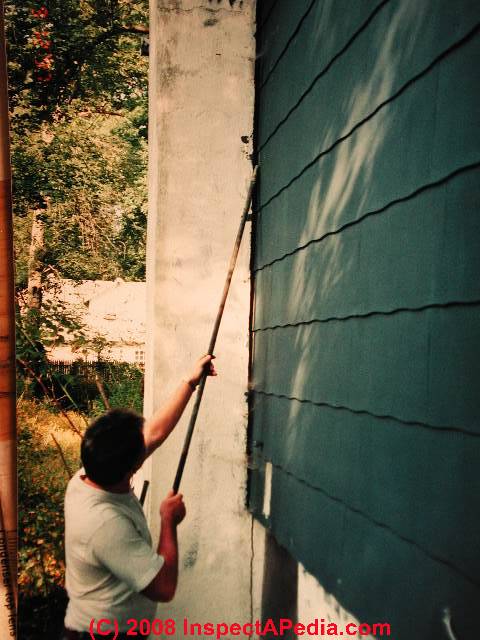

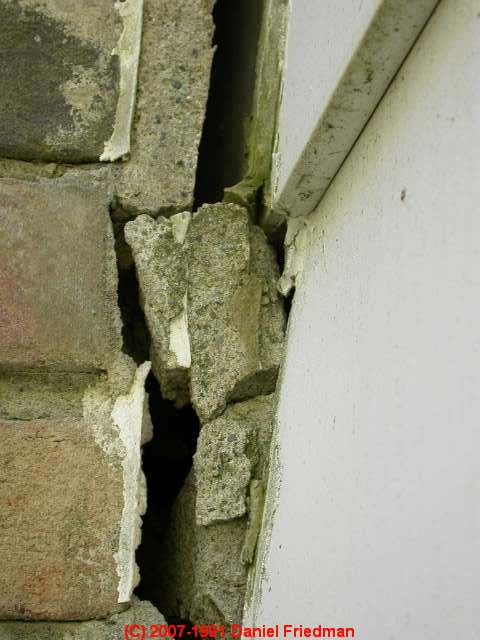

Chimney Movement detected outdoors: movement such as curving (see Curved Brick Chimneys) or leaning or separation from the building, especially in masonry chimneys, can cause damage to the flue liner or openings that might admit sparks (fire risk) or gases (carbon monoxide hazards) into the building structure or even into occupied spaces.

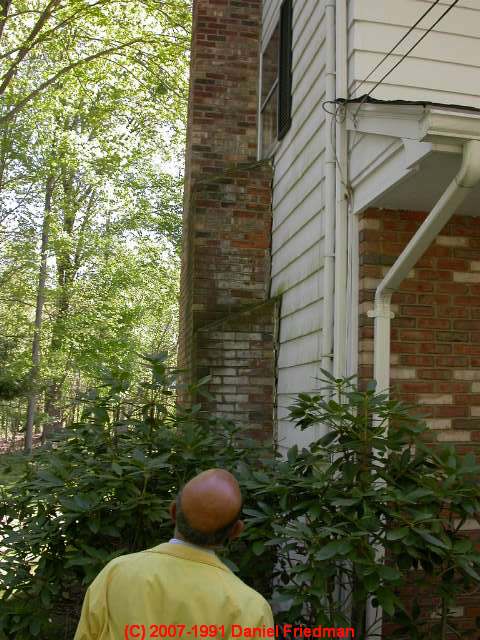

The photographs just above show a chimney which probably lacked a good footing, possibly aggravated in its lean by roof spillage onto the area where a footing should have hold the chimney steady. Movement at both of these chimneys has been significant, the chimney interior and fireplace are likely to be damaged and unsafe, and major repairs are needed.

Goofy Moving Chimney Repairs and Attempts to Hide Chimney Movement

Attempts to hide chimney movement can be dangerous since if there is a safety problem the building owner or inspector may not pick up its clues. The fresh and thick band of caulk between the chimney and the wall as shown in this photograph were traced to a chimney separation that had been "repaired" simply by more caulking at the wall. Because caulk is flexible, if it has been recently applied caulking may hide an ongoing chimney movement problem. But even if the chimney is no longer moving (or we think it is not moving) an inspection for flue safety and fireplace safety are essential. We provide a series of articles on diagnosing chimney cracks and movement include Chimney Movement - Causes, then Chimney Movement - Ongoing vs Static where we discuss determining whether chimney movement is ongoing. Readers diagnosing chimney movement and foundation problems should also see Chimney Leaning, Separation, Movement-Outdoors, and  Chimney Leaning, Separation, Movement. Also see Chimney Crack & Collapse Risks. Repairs for moving chimneys are discussed at Leaning Chimney Repair Methods. Readers should also be sure to review   Cracked Concrete Block Chimneys which we discuss under Chimney Crack & Collapse Risks, Repairs, and also   Chimney Crack Detection & Diagnosis and   Curved Brick Chimneys which provide other examples of cracking, moving masonry.
