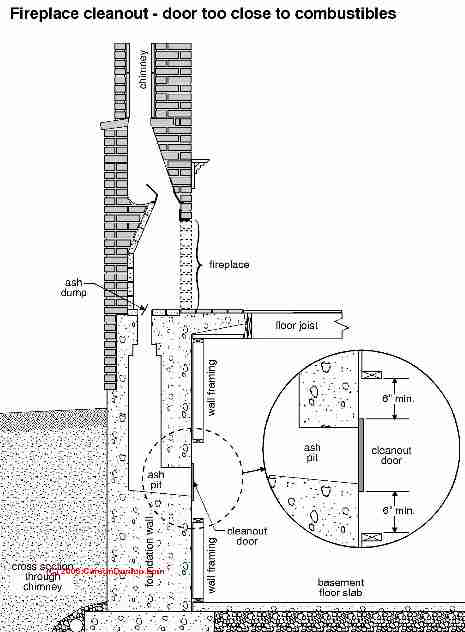

Chimney cleanout door hazards (C) Carson Dunlop

Fire Clearance Requirements for Chimney Cleanout Doors
InspectAPedia^® -

What is the required distance between a chimney cleanout door and the nearest combustible material?
Questions & answers about chimney cleanout doors & fire safety

This article describes fire clearances for chimney cleanout doors. We also explain some of the other hazards associated with chimney cleanout doors.

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers nor with topics or services discussed at this website.

These articles on chimneys and chimney safety provide detailed suggestions describing how to perform a thorough visual inspection of chimneys for safety and other defects. Chimney inspection methods and chimney repair methods are also discussed.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

Chimney Cleanout Doors Left Open or Close to Combustibles

A missing chimney cleanout door or a cleanout door left open means that there is a fire safety hazard (sparks or ashes falling out onto the basement floor) and also that it is impossible to control the draft in the flue.

we have found heating boilers with draft problems and "repair attempts" like removing the boiler's barometric damper, when all the while the root problem of bad chimney draft was that the cleanout door was open or missing.

A missing chimney cleanout door is most serious because it is unsafe.

But a missing cleanout door or simply a cleanout door that is left ajar makes it very difficult for the chimney to develop adequate draft. In turn this means that a fireplace or an oil or gas fired heating appliance may be both unsafe (carbon monoxide gas, fire hazards) and also in poor operating state.

For example on oil fired heating systems and some fireplace chimneys we've found a draft inducer installed on a chimney to cope with inadequate draft when the root problem was a basement cleanout door that had fallen off. (Draft Inducer Fans)

On gas fired appliances, inadequate draft from a missing chimney door could lead to dangerous or even fatal carbon monoxide poisoning in a building. (CARBON MONOXIDE)
