Abandoned chimney clues outside (C) Daniel Friedman

How to spot Abandoned Chimneys from Outside
InspectAPedia®  -

  • Abandoned chimneys - outdoor clues can help spot a building where a chimney was partly removed
  • Questions & answers about how to spot & assess safety hazards where chimneys have been abandoned and partly removed from buildings

This article describes visual clues that you can find on the building exterior and that can indicate the current or previous presence of abandoned chimneys and unsafe three-sided chimneys at a building.

InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers nor with topics or services discussed at this website.

© Copyright 2012 InspectAPedia.com, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use page top links to major topics or use links at the left of each page to navigate within topics and documents at this website. Green links show where you are in a document series or at this website.

Readers should also see Abandoned Chimneys - Indoor Inspection and its two sub-sections,  Abandoned Flue Openings and our List of Abandoned Chimney Hazards. These articles on chimneys and chimney safety provide detailed suggestions describing how to perform a thorough visual inspection of chimneys for safety and other defects. Chimney inspection methods and chimney repair methods are also discussed.

Definition of abandoned chimney: any chimney of any material (masonry, metal, transite pipe, other) that is no longer in use (or should not be in use) but has been only partially removed from a building.

Abandoned chimneys in buildings may be unsafe, risking collapse, falling masonry, water and air leaks, fire passage, or worse, sometimes one may even be connected to a stove or fireplace, risking setting the building on fire.

Abandoned chimney clues outside (C) Daniel Friedman


Notice that newer metal corrugated roofing patch at the right end of the metal roof in our photograph?

If outside the building you see roofing details such as shown in our photo, you should be alert for an incompletely removed abandoned chimney indoors.

Check the attic, the intermediate floors, and the basement for the remains of the chimney - it may have left a fire spread risk through the building or other hazards.

See details about how to find abandoned chimneys and what the hazards and repairs are at Abandoned Chimneys.

Most-likely found on older homes, a partially-removed abandoned chimney leaves these problems and hazards in the building:

  • An improperly abandoned chimney risks collapsing masonry - falling through ceilings below, damaging the structure and injuring building occupants
  • An improperly abandoned chimney forms a natural chaseway creating up-drafts in the structure, moving air by natural convection from lower building areas (even a crawl space or basement) up through the structure. This air movement can contribute to or even be a root cause of indoor air quality problems and mold contamination, and it certainly contributes to un-wanted building heat loss and thus higher heating costs.
  • An improperly or incompletely-abandoned chimney or flue presents two potential fire dangers:
    • the chaseway provided by the partially-abandoned chimney increases the spread of fire through the structure, often between floors
    • on occasion we have found that a later building occupant connects a heating appliance to the unsafe "abandoned" chimney, leading to a building fire or potentially fatal carbon monoxide poisoning

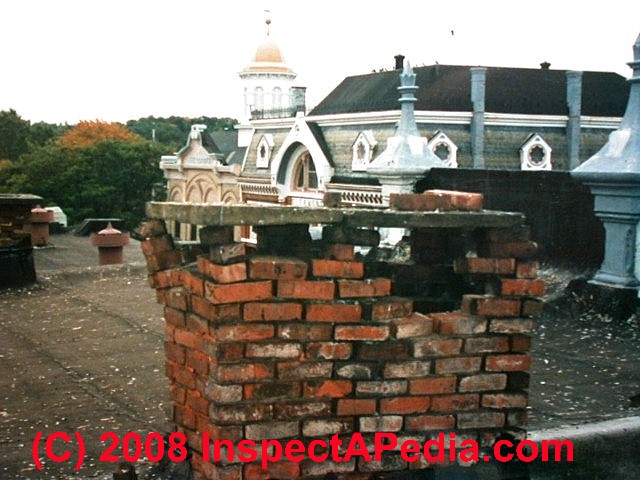

Collapsing brick chimney top - Brooklyn NY (C) Daniel Friedman


In cities and on larger multi-family buildings we often find old, single-wythe brick chimneys (photo at left) which have been abandoned but which continue to serve as an air and water pathway through the building.

If this Brooklyn, NY chimney were still in use we would be very worried about its safety.

The chimney top is collapsing, risking a dangerously blocked flue, carbon monoxide gas poisoning, as well as risking dropping a brick onto a passerby.

Chimneys of this size are large enough that a person could fall into and become trapped in the structure, as happened to Catherine Murphy.
