Owl-Flex™ brand Gray Flex Duct Deterioration & Failures
|
InspectAPedia tolerates no conflicts of interest. We have no relationship with advertisers, products, or services discussed at this website.
This article explains Owl brand gray flex duct disintegration as an example of
defective heating or cooling ductwork materials.

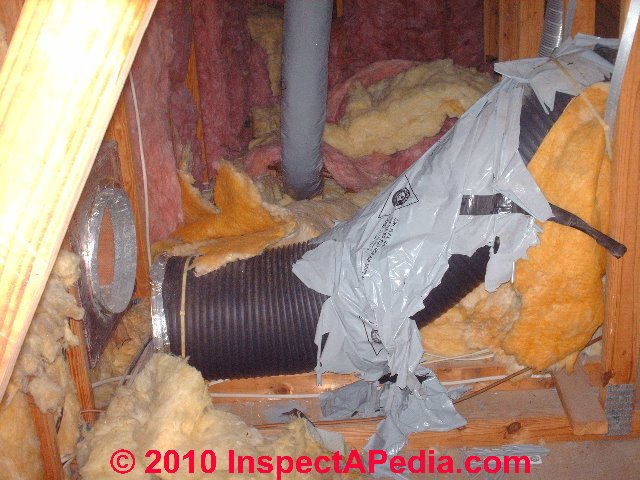

Photo of deteriorated Owl brand gray flex duct and the suggestion of possible UV degradation of flex duct (in addition to heat) are courtesy of Florida home inspector Eric Van De Ven who has reported on several homes with badly-deteriorated flexduct. We include references to product failures by manufacturers of similar flexible duct work products.
Readers concerned with deteriorating plastic and fiberglass-covered flex duct in buildings should see these duct failure reports: ALLOY SYSTEMS FLEXDUCT, and GOODMAN GRAY FLEXDUCT, and OWENS CORNING FLEXDUCT and OWL FLEXDUCT. Also see our more broad category: DUCT SYSTEM DEFECTS.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
OWL FLEX DUCT - Deterioration - Caused by UV Light Exposure?
Air conditioning duct system defects include a remarkably wide range of errors, from failure to supply cool air or failure to even circulate air
in the building, to health hazards such as use of asbestos material in or on duct work, to very dangerous conditions such as drawing heating
equipment combustion gases into the building cooling (or heating) air.
This article explains Owl brand gray plastic-covered flex duct failures that appear as loss of the gray plastic duct covering due to brittleness that appears to be caused by exposure to heat (such as in a hot attic), with references to product failures by several manufacturers of flexible duct work,
including Alloy Systems™, Goodman™ flex duct, Owens Corning™ flex duct, Owl™ flex duct. We believe that none of these defective flex duct products is currently sold (2010) but both may be found in older homes. Note: not all
Owens Corning flex duct products share this defect and disintegration problem.
How to Identify Owl-Flex Gray Flexduct in buildings

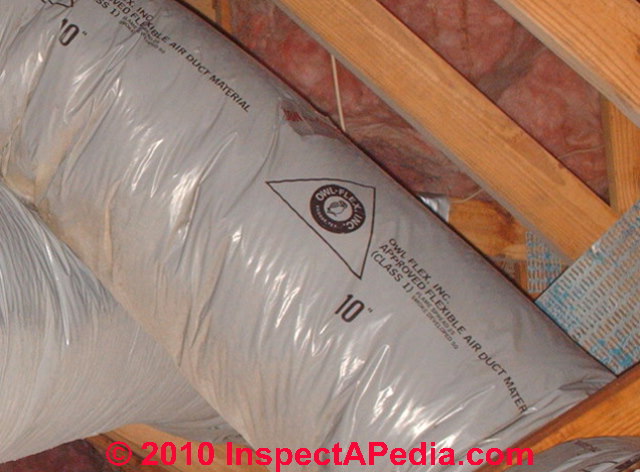

Eric Van De Ven shows in the photos below, Owl-Flex is identified by both text and a logo on the duct exterior.
What is the Problem with Owl-Flex and Some Other Flex Duct Insulation Products?
The loss of the protective plastic covering on flex duct poses several concerns including loss of the duct insulation, increased air conditioning system operating costs, and possibly air leaks out (if supply ducts are damaged) or un-wanted attic debris leaks in (if return ducts are damaged), and in-duct condensation in the HVAC system leading to mold and indoor air quality concerns.
Discussing the page top photograph of badly-deteriorated Owl-Flex duct, Mr. Van De Ven had an interesting observation:
I did an inspection yesterday and found some of the Owl-Flex duct work. The interesting thing that the most damaged portions were located near a window, that someone thoughtfully installed in the attic.
Because we argue that if we completely understood any building failure, there would be no coincidences, we speculate that in addition to the role of of high attic temperatures in some gray flex-duct deterioration, the window cited by Mr. Van De Ven may have provided added light and possibly some UV (depending on glass type) and certainly some additional sunlight-generated heat that helped explain why the flex duct was most-deteriorated where light from the window was shining on it.
|

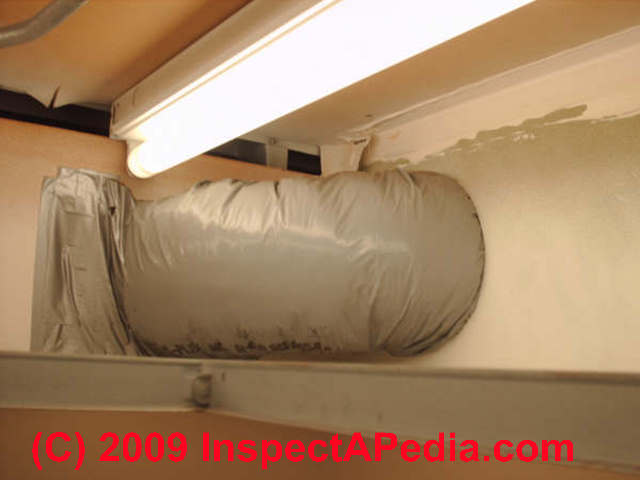

 This photo of Owl-flex™ gray plastic-covered, fiberglass insulated duct material shows damaged gray plastic covered flexible ductwork near a fluorescent light bulb.

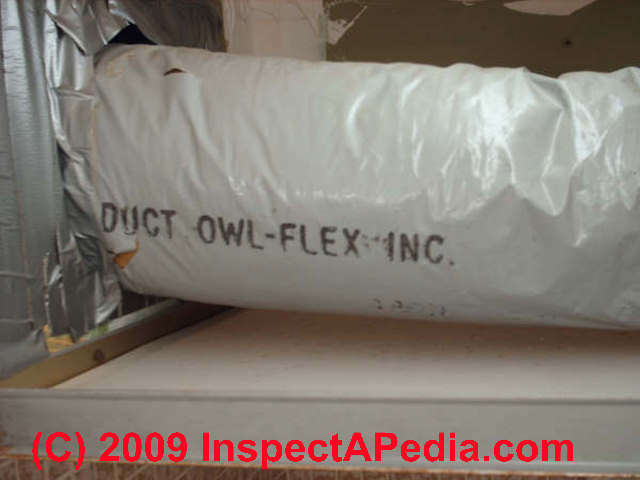

The photo at above-right, also taken in the same building by Eric Van De Ven shows the brand name on ductwork installed in the building. The photo at above-left identifies the deteriorated duct shown in our page top photo.
Owl-flex flexible ductwork has been the subject of litigation, as shown in this flex duct lawsuit document filed in 2009.
As with the Goodman flex-duct problem described at GOODMAN GRAY FLEXDUCT, and also at in hot attic spaces or where exposed to UV light, the Owl-Flex flexible air conditioning
duct material disintegrates leaving its fiberglass insulation exposed to also disintegrate, leak, or possibly blow into
the building living space.
Does Exposure to a Nearby UV Light Also Cause Gray Flex Duct Damage?
Two common sources of deterioration in plastics are heat and UV light.
|
UV Light as a Source of Gray Flex Duct Deterioration
|
 A fluorescent bulb contains low pressure mercury vapor, a gas that produces invisible ultraviolet light (UV radiation) when the gas is excited by electricity. Phosphorescent coating on the inside of the fluorescent light tube absorbs the UV radiation and converts it to visible light.
According to General Electric, a manufacturer of fluorescent light bulbs,
Regular fluorescent light bulbs used in your home and office do not produce a hazardous amount of ultraviolet light (UV). Most light sources, including fluorescent bulbs, emit a small amount of UV, but the UV produced by fluorescent light bulbs is far less than the amount produced by natural daylight. (Ultraviolet light rays are the light wavelengths that can cause sunburn and skin damage.)
But bringing up the sun does not address the impact of UV on thin plastic covering flexible ductwork.
UV absorption and polymer degradation occurs when polymers such as polypropylene and polyethylene absorb UV light causing weakening of molecular bonds at weak points in the polymer chain. So since many polymers are degraded by exposure to UV light, and therefore many plastics are damaged and made brittle by UV light, the close proximity to the bulb is a very strong suggestion.
|
Heat as a Source of Deterioration of Gray Plastic Covered Flex Ductwork
Heat is also a factor in plastic degradation, which may explain why more of the Goodman, Owens Corning, Or Owl type gray flex duct deterioration was in (hot) attics. Wikipedia: "Polymers are susceptible to attack by atmospheric oxygen, especially at elevated temperatures encountered during processing to shape." Presumably also in a hot attic heat is a well understood factor in plastic deterioration such as plastic covering flexduct.
A UV light also gives off some heat, though usually less than a typical incandescent bulb. So heat from a UV light very close to the plastic duct cover may also be a factor in deterioration.
The hypothesis that gray flex duct deterioration close to a fluorescent bulb is strengthened if the damage was less or absent on the same material where it was more distant from or not exposed at all to the UV light from the bulb, but where otherwise it was of the same age in the same general building conditions (such as exposure to temperatures).
When a flex-duct product has lost its exterior plastic covering the effects are these:
- The cost of heating or cooling the building is increased due to lost insulation: because the ducts are no longer insulated from the ambient temperature in the attic or crawl space where they are located. For example, an air conditioning duct passing through a hot attic and missing its insulation will be heated by the ambient attic air, delivering warmer air to the living space than is desired.
- The cost of heating or cooling the building is increased due to leaks: because damaged ducts are more likely to leak, cooled or warmed air intended for the occupied space may be lost in the attic or crawl space where the damaged HVAC ducts are located.
In addition we might see these two indirect problems developing:
- Increased circulation of fiberglass particles from the duct insulation or from building insulation which may be picked up and blown into the building air supply
- Mold growth in the HVAC ducts due to loss of insulation and increased in-duct condensation in some circumstances. See Flexduct Lawsuit at our references below.
Replacement of the heating or air conditioning flexible sections of duct work is required - a significant expense which will be greater if flex-duct needs to be replaced where it passes through inaccessible areas such as finished walls or ceilings.
Notice that not all flex-duct products will fail in this manner
and unless you specifically find evidence of this deterioration, replacement of the flex-duct in a building may not be warranted. Where this duct is found in a building it should be replaced.
Below at Technical Reviewers & References we include Flexible Air Duct Installation Manuals, standards, guidelines, and contact information for several flexible air duct manufacturers as well as access to Flexible Duct Performance & Installation Standards provided by the Air Diffusion Council.
Readers concerned with deteriorating plastic and fiberglass-covered flex duct in buildings should see these duct failure reports: ALLOY SYSTEMS FLEXDUCT, and GOODMAN GRAY FLEXDUCT, and OWENS CORNING FLEXDUCT and OWL FLEXDUCT. Also see our more broad category: DUCT SYSTEM DEFECTS.
