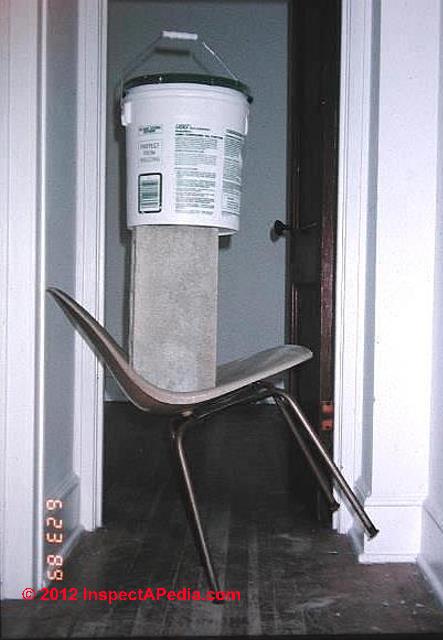

Attic stair & pull-down or folding stairway construction, installation, inspection, hazards & repairs: this article explains how to inspect the condition and safety of attic stairs, folding or pull-down attic stairs and ladders, and attic stairway railings, landings, & treads, and related conditions for safety and proper
construction. Weinclude references to key documents on building codes and stair and railing safety. Our page top photo shows a remarkable attic access method encountered by the author.
Green links show where you are. © Copyright 2013 InspectAPedia.com, All Rights Reserved. Author Daniel Friedman.
Attic Stair Inspection & Safety Concerns
We've had several reports of severe injury involving collapsing attic stairs, including involving home inspectors as well as occupants. Attic & Basement stair defects can be grouped by the stair type:
Conventional or home-made attic stairways - hazards and defects
|
 Watch for attic stairs that do not meet recommended standards for
- Attic Stair Step riser height - often limited space led attic stair builders to construct very steep stairs with very shallow treads, and as in our photo at left, no handrails since the railings were in the way of carrying stuff in and out of the attic.
- Step tread depth
- Missing railings
- Stair top landing guardrails missing - often omitted around the top of an attic stair that emerges into the attic floor - easy for someone to step backwards and fall right into the stairwell.
- Worn, damaged stair treads
- Basement walkout stair cover rotted or loose - a serious child hazard such as shown in our photo at the top of this page.

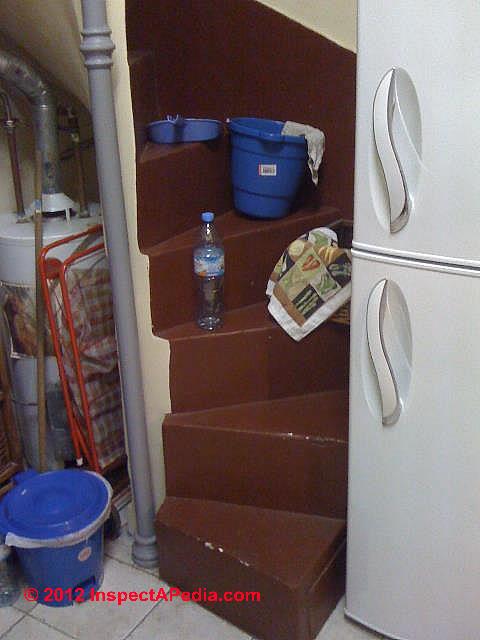

- Debris, toys, or stored items stored on steps - a serious trip and fall hazard (Photo at left).
|
Defective & Unsafe Attic Folding Stairs or Pull-Down Attic Stairs
Watch for these common folding attic stair or ladder defects:

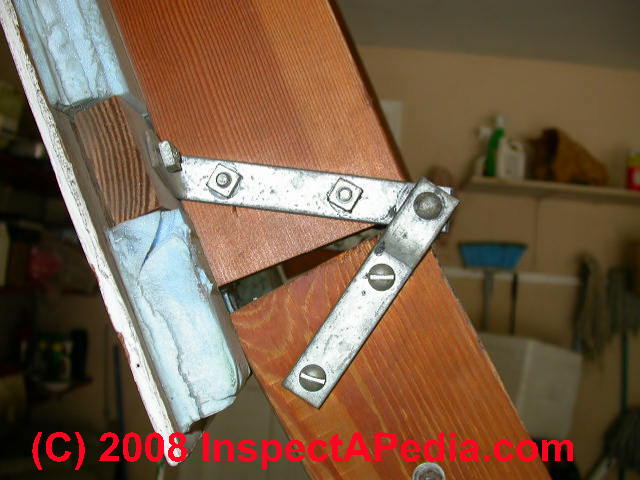

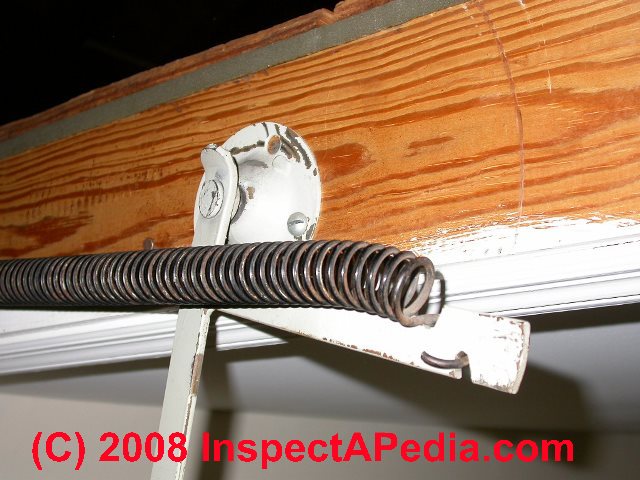

- Attic pull down stair spring and hinge bent, loose, broken - risk breaking spring or hinge parts striking users pulling down the stairs (See photo at left). Check the pull down stair arm and hinge parts for
- Bent stair arm parts
- Loose rivets securing the hinged pull-down attic stair ladder to the hinge point on the stair frame (photo at left)
- Spring popping off of top of the spring carrier (photo at left)

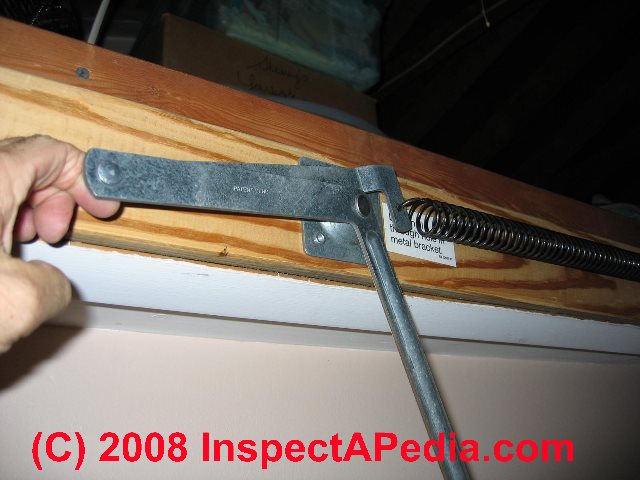

- Spring arm loose, not remaining parallel to its hinge mount (photo at above right)

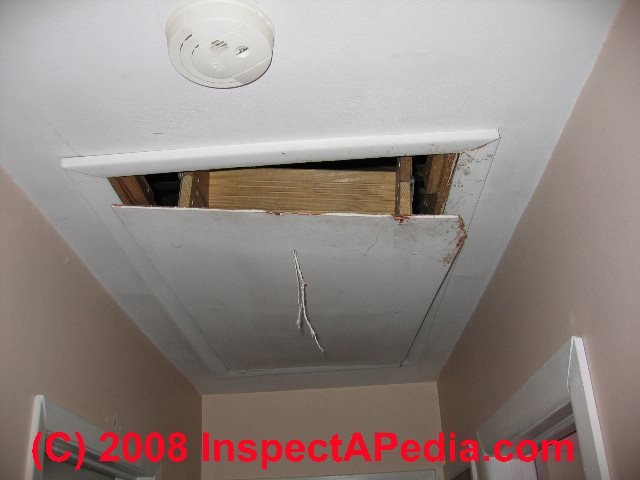

- Attic pull down stair that does not close property - air leaks, heat loss, and risk of mechanical damage may leave a stair like this unsafe. (Photo at left).

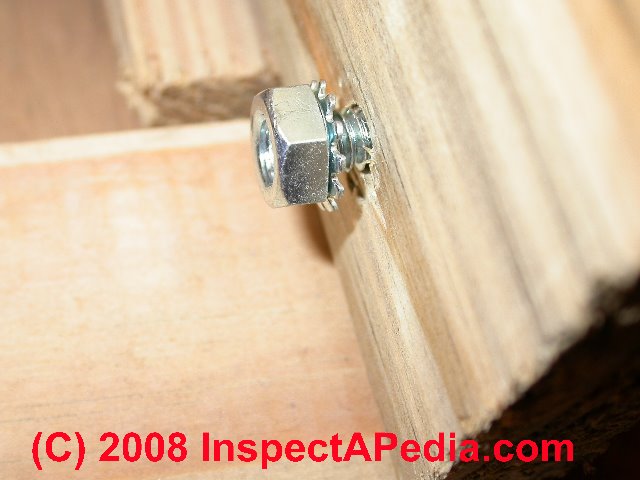

- Loose or missing bolts or hardware securing the attic folding stair hinges
|
- Loose or missing bolts securing the stair or ladder treads to the attic stair stringers or sides
The hardware used on most attic folding stair kits is not redundant. If a nut or bolt falls out of a hinge because it was not kept tight there is serious risk of stair collapse. |

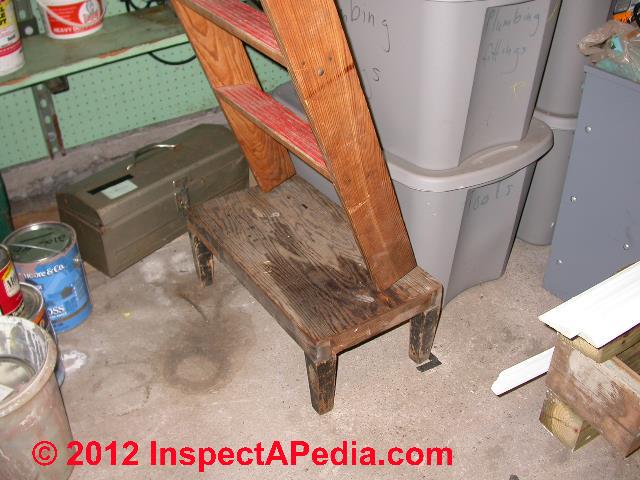

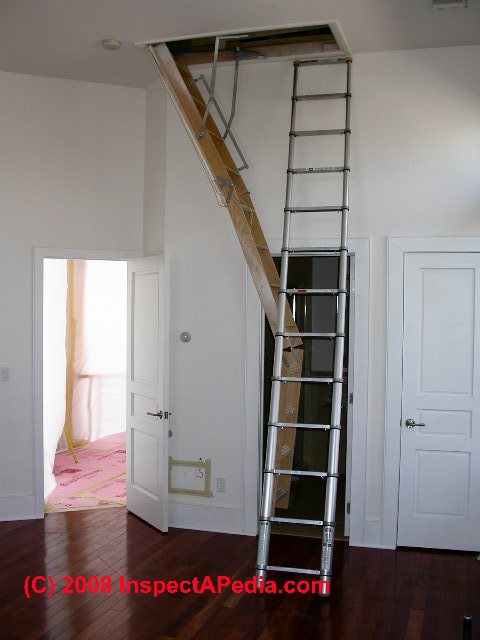

- Attic pull-down or folding stairs cut too short, perhaps not reaching the floor, leading to an unsafe and ridiculous "hanging" attic stair (Photo at left)
- Attic folding stairs cut too long, causing a pressure point at the folding hinge, leading to split or broken attic folding stair stringers or sides (See photo at the top of this page)
- Attic folding stairs installed over an existing building stairway such as to a lower floor, attic folding stairs folding down onto or into the lower stairwell (unsafe to enter or exit)
|
- Attic stair frame not properly secured to the ceiling rough opening

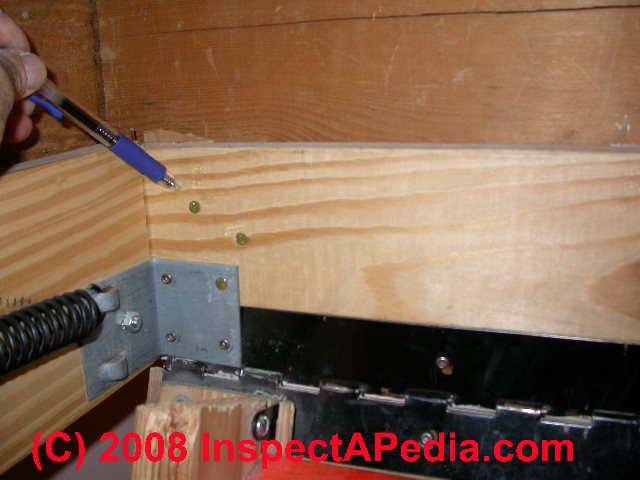

As you can see in our photo, this attic pull down stair frame has been tacked in place using a pair of roofing nails set through a cedar shingle shim.
An ASHI home inspector was seriously hurt when descending a set of attic stairs like these when the stair set came away from the rough opening and fell to the floor below. |

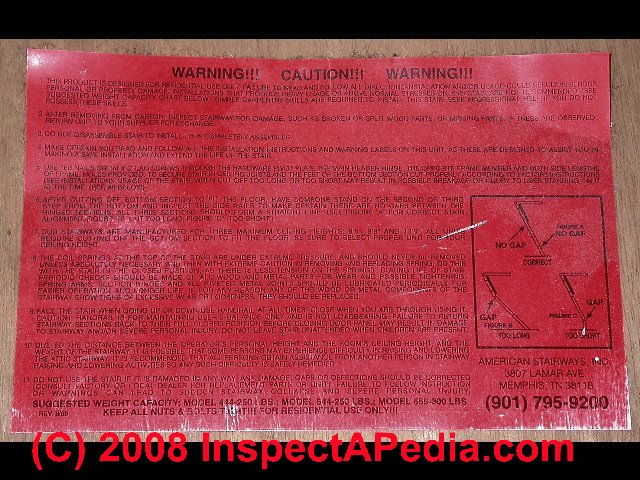

Warning labels attached by attic pull-down folding stair manufacturers list the requirements for safe attic folding stair maintenance:
This label is from a stair produced by American Stairways, Inc. and it indicates, among other things:
- The stair is for residential use only
- Use 16d nails or 1/4" x 3" lag screws (at specified locations) to secure the stair frame to the rough opening (not roofing nails as we showed above, and not drywall screws as we often encounter)
- Properly trim the bottom segment of the stairs to meet the floor (details are provided)
- The coil springs are under extreme pressure ... inspect for loose parts ... lubricate (details are provided)
- Face the stairs when going up or down; use the hand rail for balance only (it is not load bearing)
- Do not use the stair if it is damaged in any way
- Other warnings and details are provided by the manufacturer on this label and in the installation instructions
|
Examples of Other Bad Attic Access Stairs & Railings

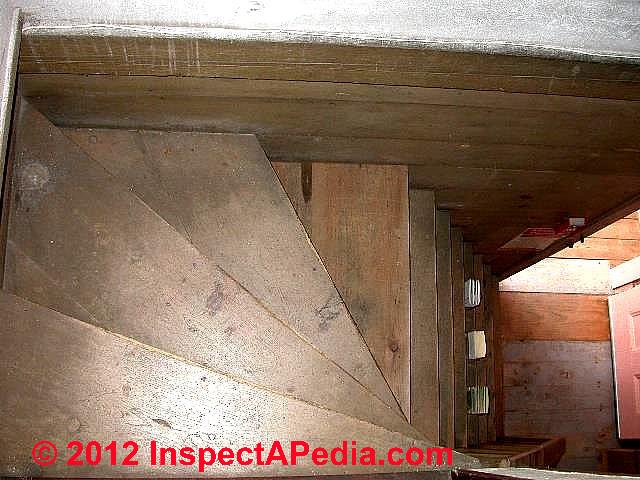

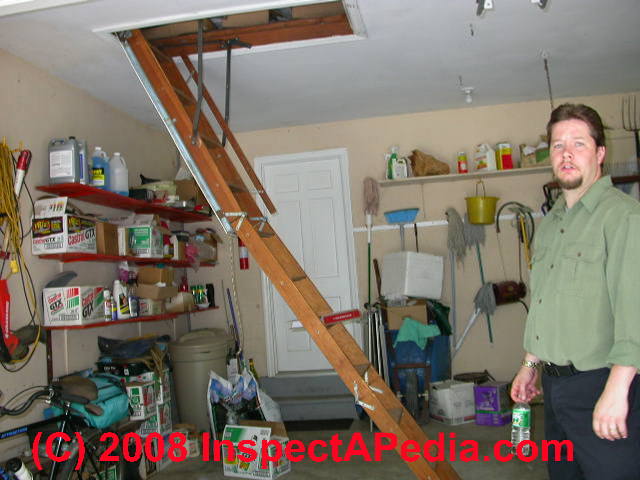

More eccenctric attic accesses: an attic pull down stair ladder that is too short (below left) and a near-vertical "stairs" with a turn, (below right).

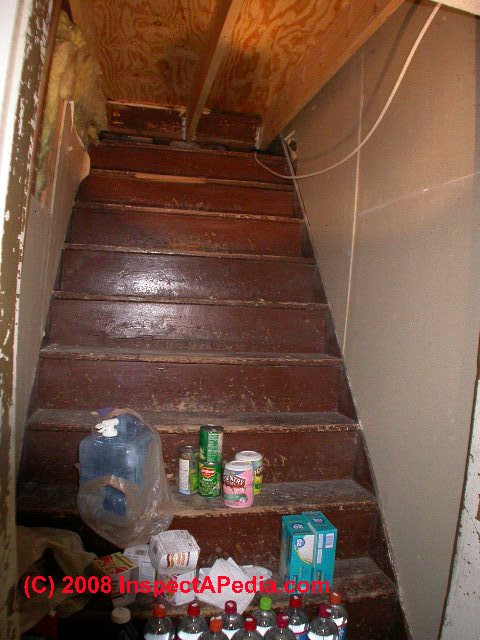

Cluttered, steep attic stair is an access hazard and possibly a fire egress hazard.
...
