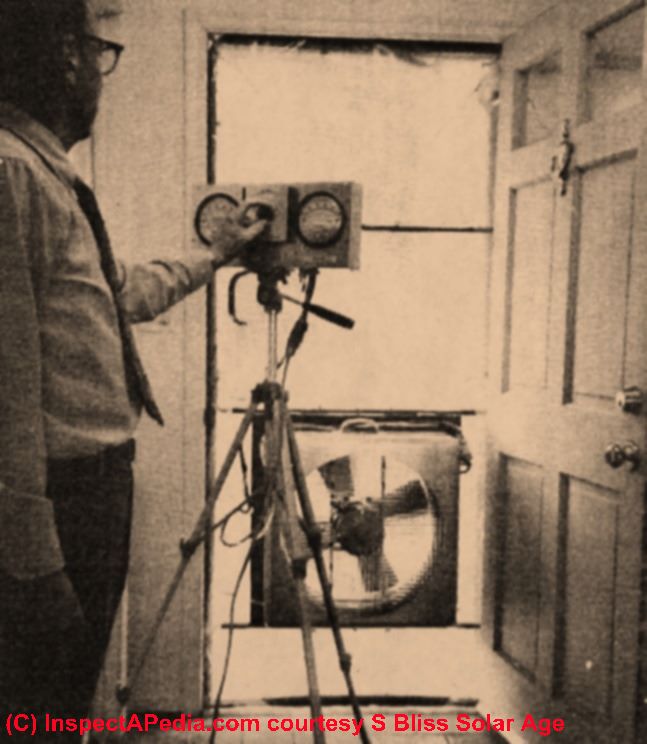

This article discusses sources education, experience, and tools for "house doctors" who use building science, home inspection experience, and thermal scanners, IR scanners, thermography cameras and other tools for the detection of heat loss or air infiltration in buildings.

How does Air Move Through a Building? A Quick Look at the Basic Forces of Building Air Movement

An understanding of air movement in buildings is essential when making checks for sources of common indoor air contaminants in buildings such as mold or allergens, or to understand un-wanted building heat loss or gain.

Here and in detailed articles whose links are found at the left of this page, we include expanded annotated information from the US EPA from whom we adapted the following: [5]

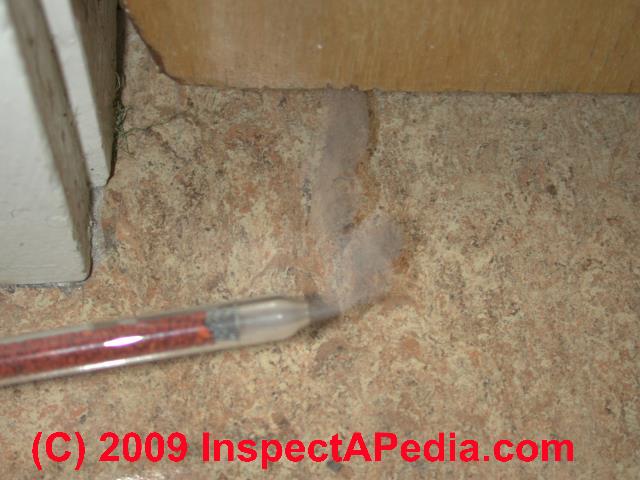

Our photo (left) shows the editor [DF] demonstrating air movement between rooms beneath a bedroom door, using a chemical smoke test gun.

Watch out: The toolbox for studying air movement, heat loss, airborne particle levels, gases or chemicals moving in buildings, is a large one, but tools and gadgets alone do not make a building expert, and worse, they might be used improperly giving misleading and unnecessarily expensive results use to "sell" treatments or "improvements" that might not be the best way to spend on improving building air quality or saving on building energy costs. Understanding the basics about air movement and appreciating the benefits of an expert visual inspection (see THERMAL TRACKING & HEAT LOSS) can help consumers guard against bad advice or superficial building studies. .

Air flow patterns in buildings are the result of combined forces from

mechanical ventilation systems such as warm air heat, air conditioning, exhaust fans, ventilation system blowers and fans
human activities in the building (breathing, cooking, using equipment)
natural effects (warm air rises, cool air falls)

Air Usually Moves "Up" in Buildings in a Chimney Effect

Generally in buildings warm air rises, carrying pollutants or odors and even small airborne particles such as asbestos (if present and friable and disturbed) or some small mold spores (Aspergillus sp. for example).

The taller the structure, and the greater the temperature differences between levels, the stronger may be this "upwards" airflow movement. In high rise buildings the upwards air currents in stairways, elevator shafts, and other areas can be enormous, and may be still stronger when windows are opened or exhaust fans operated on upper floors.

Our photo (left) illustrates a strong air flow out through an open window at the top floor of a Manhattan office building. We [DF] taped a tissue to the window sash bottom (red arrow) to demonstrate the airflow to the office management.
Air infiltration leaks at lower levels (or deliberate fresh air intake vents) in a building permit make-up air to enter the structure so that this air movement may be continuous. See AIR BYPASS LEAKS and AIR LEAK SEALING PROCEDURE
Air exhaust openings (such as attic ridge vents or other roof vents) in the upper levels or attic or roof of a building increase this chimney effect.

Air Movement may be "Down" in Buildings

But air movement in buildings can be tricky and may move in un-expected directions. For example:

Cooling the air in an upper floor room in a warm building may generate downwards movement of air in the building
Use of exhaust fans can reverse the usual direction of air movement in a building, for example operating window fans or other exhaust fans that are blowing "out" on lower floors

The Direction of Air Movement Can Change Significantly & Quickly in Buildings

Opening or closing doors and windows will affect building air movement and depending on which windows or doors are opened, the effects can be dramatic.
Operation of elevators in buildings can reverse airflow and the direction of movement of airborne particles, gases, or odors between upper and lower building areas every time the elevator car makes a trip up (sucking up air from lower floors) or down (pushing a column of air out from upper levels down through lower floors) the elevator shaft.
And in tight buildings, closing the door to a small boiler or furnace room, for example, can cause the equipment to lack adequate combustion air. (See COMBUSTION AIR for TIGHT BUILDINGS).

Small Openings in Buildings can Move Large Volumes of Air & Pollutants

These air pressure differences and air movements in buildings readily move particles, gases, and odors between building areas through both large openings (windows, doors, stairways, elevator shafts, ductwork), and tiny openings (gaps and cracks in framing, openings around electrical wires, pipes, ducts).

What surprises those unfamiliar with building air movement and indoor air pollution studies, is that the myriad of tiny openings in buildings can permit significant levels of air and particle or contaminant movement between building areas even when there are not large obvious holes or "windows" between the spaces.

How do I Become A House Doctor [a building doctor for energy surveys or indoor air quality or for other building problems]?

A "house doctor" as we use the term here is an expert building consultant who understands building science, how air moves through a building, how buildings are actually constructed (and what goes wrong), heating, ventilating, air conditioning, and building insulation systems, standards, and good practices.

And, if that's not enough, also how to use an occupant interview, thorough visual inspection of the building, and special tools and equipment (HEAT LOSS DETECTION TOOLS) to diagnose and describe repairs or changes necessary for a wide range of building complaints such as indoor air quality, mold contamination, heating costs, cooling costs, odors, leaks, and problems with the structure and/or its mechanical systems. Also see THERMAL IMAGING, THERMOGRAPHY.

Photo at page top is discussed at Basement Energy Losses- IR & Visual. The accompanying text are reprinted/adapted/excerpted with permission from Solar Age Magazine - editor Steven Bliss.

Readers should see AIR LEAK DETECTION TOOLS. Also see ENERGY SAVINGS in buildings. And for an example of visual clues that identify building air leaks and heat loss with no instruments whatsoever, see Air Bypass Leaks, Thermal Tracking. Contact us to suggest text changes and additions and, if you wish, to receive online listing and credit for that contribution.

The question-and-answer article below paraphrases, quotes-from, updates, and comments an original article from Solar Age Magazine and written by Steven Bliss.

Details about how to use thermal imaging and the sources of error or even abuse and misue of the equipment are found at THERMAL IMAGING, THERMOGRAPHY

Information on Becoming a House Doctor for Energy Surveys, Air Leaks, Heat Loss Diagnosis & Repair
