Hurricane damage assessment & damage repair or restoration procedures. This article series provides residential & light construction hurricane damage assessment procedures for buildings following hurricanes or tropical storms and wind damage. We discuss safe building entry procedures, setting the priority for repairs, and we give more detailed building inspection advice for building structures such as foundations & framing, and inspection and restoration of building mechanical systems. We discuss initial or rapid steps to minimize building damage such as proper procedures for water removal, dryout, prevention of avoidable mold growth control, mold cleanup. We also include links and citations to expert sources for emergency relief (FEMA, ARC in the U.S.), and we cite scholarly books and articles on building damage prevention. Our page top photo shows wind-damaged siding following a hurricane-type storm.

Hurricane Damage to Buildings: inspection, assessment, repair, prevention + hurricane safety advice

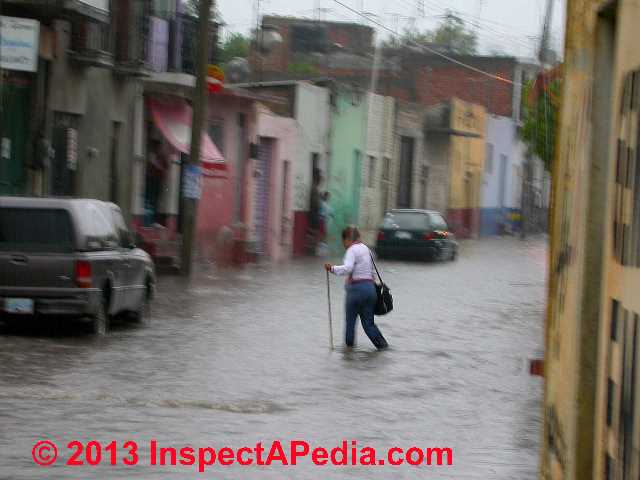

Flooding in Comonfort, Guanajuato, Mexico (C) 2009 Daniel Friedman

If a hurricane is likely in your area, these are things you should do:

Listen to the radio or TV for information.
Secure your home, close storm shutters, and secure outdoor objects or bring them indoors.
Turn off utilities if instructed to do so. Otherwise, turn the refrigerator thermostat to its coldest setting and keep its doors closed.
Turn off propane tanks.· Avoid using the phone, except for serious emergencies.
Moor your boat if time permits.
Ensure a supply of water for sanitary purposes such as cleaning and flushing toilets. Fill the bathtub and other large containers with water.

When to leave your home in the face of a coming storm, hurricane, cyclone, or similar severe weather

Leave your home if you are directed by local authorities to do so. Be sure to follow their instructions.
Temporary structures are particularly vulnerable to storm damage and therefore are not safe places to stay if a hurricane is coming.
Because hurricane winds are stronger at higher elevations above ground, a tall building such as a high-rise apartment or hotel can be dangerous in a hurricane. In an otherwise secure apartment near the top of a Chicago high rise we [DF] saw first hand how strong winds blowing off of the lake sent a torrent of water through the unit's lake-facing windows and doors. Damage from broken, flying glass was still worse.
Buildings or private homes found on a coast, in a floodplain, including homes that are located near a river, or an inland waterway are at risk of being severely flooded and can even trap occupants who first flee to upper floors without understanding that in some areas flood waters can exceed even the rooftop height.
Leave your home even if the conditions described above are not present but for any other reason you feel you are in danger. Examples might include risk of freezing from loss of heat, people who require special medical equipment that may fail during a storm, or if you live in an area where you feel unsafe due to violence.

If you are unable to evacuate, go to your safe room. If you do not have one, follow these guidelines

Stay indoors during the hurricane and away from windows and glass doors.
Close all interior doors—secure and brace external doors.
Keep curtains and blinds closed. Do not be fooled if there is a lull; it could be the eye of the storm - winds will pick up again.
Take refuge in a small interior room, closet, or hallway on the lowest level.
Lie on the floor under a table or another sturdy object.

Hurricane Damage Prevention Advice for Homeowners

Watch out: the first priority in event of a hurricane is getting out of your home and to a safe location. See Hurricane Safety Preparation - basic advice from FEMA & other sources
Storm shutters: storm shutters that have been properly built, installed, and maintained are important to avoid building damage during a hurricane.

Sketch at left of two types of storm shutters from FEMA [8].

Weather, salt, corrosion can prevent storm shutter operation when needed by making the shutters jam and fail to close. Quoting from FEMA's "Protection of Openings - Shutters and Glazing",

According to the 2009 International Building Code (IBC) and the 2009 International Residential Code (IRC), hurricane-prone regions are areas vulnerable to hurricanes such as:

1. The U.S. Atlantic Ocean and Gulf of Mexico coasts where the basic wind speed is greater than 90 mph1 (40 m/s).

2. Hawaii, Puerto Rico, Guam, the U.S. Virgin Islands, and American Samoa.

Watch out: only install and use storm shutters or storm-resistant windows and doors that have been tested and approved and that bear a certification label indicating that the product has been tested and certified for impact resistance. (ASTM E1996-09 is an example standard for hurricane shutter. Additional standards for hurricane & wind resistance of structures are at the end of this article. [10][11][12][13][14][15][16][17][18].

Also make sure that the storm shutters are properly secured to the building. In coastal areas where there may be salt spray we've found (from my mom-DF) that roll-down type storm shutters may jam and fail to operate in an emergency - so it's a good idea to check the operation of these devices at least annually. FEMA adds these storm shutter protection code citations:

Sections 1609.1.2 and R301.2.1.2, of the 2009 editions of the IBC and IRC, respectively, address the Protection of Openings. These sections state that in wind-borne debris regions, glazing in buildings shall be impact resistant or protected with an impact- resistant covering that meets the requirements of an approved impact-resistant standard or the American Society of Testing and Materials (ASTM) standards ASTM E 1996 and ASTM E 1886. [8]
Impact-resistant "hurricane glass"- a more costly improvement (used by our mom in Boca Raton FL) is the installation of "hurricane proof" shatter-resistant glass. For people who are in a more remote location and who themselves may be unable to operate their storm shutters in an emergency this safety improvement may be appropriate. But

Watch out: hurricane-proof glass may not be all that "proof". The Espiritu Santo building in Brickell, the Four Seasons, and other glass towers in Florida all were badly damaged by hurricanes Katrina and Wilma. The large-object impact resistance of "hurricane glass" depends not only on the glass itself but the structure of the wall into which it is installed and the adequacy of the installation. See "Performance of Glass/Cladding..."
Structural wood panels (plywood, OSB) for protection of building windows & doors against hurricane damage are an acceptable alternative to hurricane or storm shutters or impact-resistant windows and doors. But FEMA warns that the panels must be adequately secured in place on the building. Otherwise the risk is that the panels themselves become airborne hazards during the hurricane or other storm.

Under provisions of the IRC, wood structural panels are permitted for buildings with a mean roof height of 33 feet (10,058 mm) or less where wind speeds do not exceed 130 mph2 (58 m/s). [7]

Wood structural panels could be used as an alternative to provide protection so long as they meet local building code requirements. Panel attachment should be in accordance with Table 1609.1.2 (IBC) and Table R301.2.1.2 (IRC) and installed using corrosion-resistant attachment hardware and anchors permanently installed on the building. Under provisions of the IBC, wood structural panels are permitted for Group R-3 and R-4 buildings with a mean roof height of 45 feet (13,716 mm) or less where wind speeds do not exceed 140 mph (63 m/s). Under provisions of the IRC, wood structural panels are permitted for buildings with a mean roof height of 33 feet (10,058 mm) or less where wind speeds do not exceed 130 mph2 (58 m/s). Figure 1 shows a house utilizing wood structural panels to provide opening protection.[8]
Structural connections: if a hurricane is coming, it's almost certainly too late to start modifying your home's structure to make it more earthquake or hurricane resistant, but during home renovations or repairs, and as part of a home inspection, make sure that the appropriate structural tie-downs and connectors have been installed to secure the building's roof to its walls and its walls to the foundation.
Exterior and yard items: make sure that all loose objects have been removed from your yard and stored inside or are securely tied down before a hurricane hits. If your building has movable shutters that are not secured closed for window or door protection they still must be well secured to the building lest they become an airborne hazard themselves. For example decorative shutters mounted by simple screws to the building siding are not adequately secured. They must be fastened to building framing members.[7]
Garage doors: be sure that your garage door is closed, and that its mounting hardware is un-damaged and secure. If the door seems loose or insecure, back your automobile up until its bumper gently touches the garage door to help resist damage.
Insurance coverage for hurricane damage: :
- Consult your homeowners' insurance company for their hurricane damage prevention advice and also to review your insurance coverage. Many homeowners policies exclude coverage for water damage due to flooding caused by a hurricane, covering only wind damage. Insurance policies that do include water damage from flooding may include a deductible amount, covering damages only above insurance provided by the National Flood Insurance Program - NFIP.
- Inventory: make a photo-inventory of all of your possessions as well as the features of your home, inside and out, and store the data in a backup-copy off-site or at an online internet data service

Additional References for Prevention of Damage to Homes by Hurricanes & Tropical Storms

Ayscue, Jon K. Hurricane damage to residential structures: risk and mitigation. Natural Hazard Research and Applications Information Center, Institute of Behavioral Science, University of Colorado, 1996.
Prevatt, D. O., G. M. Marcelle, I. Kelman, L. A. Dupigny-Giroux, and F. J. Masters. "On Reducing Hurricane Damage to Housing in the Caribbean Islands.", http://www.davidoprevatt.com/wp-content/uploads/2010/04/prevatt-et-al-on-reducing-hurricane-damage-to-housing-in-the-caribbean-islands-atc-2010.pdf, retrieved 03/03/2013
Allen, Myles. "2 Flooding, windstorms and climate change.", http://www.bvsde.paho.org/bvsacd/cd68/UK2008/cap2.pdf, retrieved 3/3/2013
Living in the Danger Zone: Realities about Hurricanes - book recommendation

Windstorm Advice

See WIND DAMAGE topic home page. Excerpts are below.

Trim back, cable-tie, or remove trees close to the building and have an arborist (tree specialist) inspect the health of large trees near the building.

Build or find a safe place to wait out a tornado. The Federal Alliance for Safe Homes (FLASH®) recommends having a safe room or storm shelter professionally built [32] but in our estimate most homes do not have a specially-constructed storm shelter. But you may be able to reinforce a basement area or a closet or storage room to serve that purpose.

Tornado & Windstorm Safety Steps to Take After the Storm

Don't re-enter a building that may be unsafe due to collapse hazards, fire hazards, electrical shock hazards, or LP or natural gas leaks. BUILDING ENTRY for DAMAGE ASSESSMENT includes safety suggestions that pertain to wind, tornado, earthquake and other disasters as well. There we discuss how to enter a building safely and how to determine if it is safe to turn utilities back on.

References for the Prevention of Damage to Homes by Winds Associated with Hurricanes
