Here we discuss critical deck flashing details for decks in order to avoid rot and leaks at the deck ledger board and at the building to which a deck is attached, and we provide deck or balcony design and construction details for waterproofing at door jambs and sills. Also see Deck & Porch Connections to Building. This article includes excerpts or adaptations from Best Practices Guide to Residential Construction, by Steven Bliss, courtesy of Wiley & Sons. Also see our review of that book. Also see DECK FLASHING LEAKS, ROT Case Study for an example of an older deck with rot and collapse due to improper construction and missing building flashing.

© Copyright 2009 Daniel Friedman, Steve Bliss, Wiley & Sons, All Rights Reserved. Information Accuracy & Bias Pledge is at below-left. Use links at the left of each page to navigate this document or to view other topics at this website. Green links show where you are in our document or website.

Photos & Construction Details Show How & Where to Install Flashing between a Deck and the Building

Details of Proper Flashing & Waterproofing at a Deck or Balcony Ledger Board

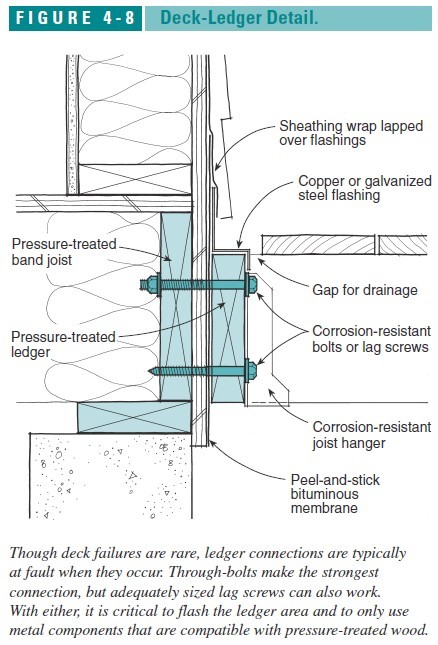

Sketch of flashing details at a deck attachment to building (C) J Wiley Steve BlissAs described in Best Practices Guide to Residential Construction:

Flashing details at the deck ledger connection to the building: Proper flashing is critical since leakage at the band joists could lead to decay and failure of the deck connections.

The deck ledger/building flashing figure at left shows building and deck sheathing and flashing details to avoid problem-causing leaks at the deck ledger.

The siding should be removed over the band-joist area, and a wide band of peel-and-stick membrane or metal flashing should run over the band joist and up under the building felt or housewrap.

A second cap flashing should direct water over the ledger and away from the house.

Details of Proper Flashing & Waterproofing at a Deck or Balcony Doorway

Rotted sill at balcony door (C) Daniel Friedman

Flashing details at doors opening onto decks & balconies: In addition to the copper or galvanized steel flashing shown in the sketch at left, additional flashing is almost certainly going to be needed below the door or sliding door that gives access to the deck from the building.

Our photo (left) shows a balcony door sill that has rotted away at a 20 year old sliding door opening onto a rooftop deck (the website author's). While the peeling paint and rot at the bottom of the brick-molding door trim (photo left) shows that there has been little maintenance at this door opening, the rot below the door is due to omission of flashing of any sort when the door was installed. The aluminum sliding door track was simply caulked to the pine door threshold.

Best Practices Guide to Residential Construction explains:

Some contractors build their own custom door sill flashing on-site using a bending brake, but pre-fabricated sliding door flashings and water tight door pans for use at balconies and decks are available from building suppliers as well. When installing flashing below the sliding or hinged door opening onto a deck, be sure that:

  • The door flashing pan is bent up and caulked under the door sill so that water will not be directed into the building by the flashing
  • The door flashing pan extends outwards over the deck ledger just as the simpler flashing is shown in the sketch above
  • The door flashing is constructed of copper or galvanized steel, or you use an adhesive flashing membrane in order to avoid corrosion through the aluminum flashing where it touches pressure-treated wood used for the building rim joist, sill plate, or deck ledger board.
  • A water-tight flashing membrane (Moistop®) is set in place around the door sill and lapped over the metal deck ledger flashing discussed above
  • The deck doorway rough opening is sealed with caulk as the door frame (jamb, header, sill) is set into the R.O.
  • Building paper above and around the door opening should lap over the opening between the door jamb set and the rough opening.

If deck flashing and door jamb sealing steps are omitted at this connection, failure of the deck ledger can be caused rot and decay in the ledger or band joist.

Lags or bolts provide little support when fastened to rotted wood. So proper flashing of the ledger and band joist area is critical.

Deck Collapse Case Study includes additional photos of improper connections between a residential deck and the building that led to a catastrophic deck collapse.

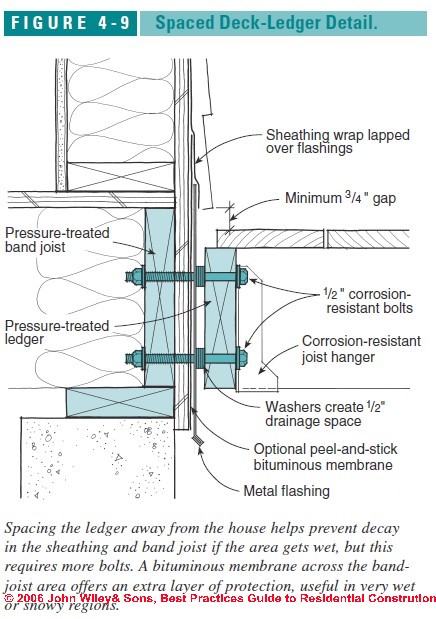

Leave an Air Space or Gap Between the Deck Ledger and the Building to Avoid Rot and Leaks

Deck ledger nails exposed (C) Daniel Friedman

Some deck builders prefer to leave an air space at the ledger to assist with drying if the area gets wet. Flashing details are shown in the figure at left.

Spacing the ledger away from the house helps prevent decay in the sheathing and band joist if the area gets wet, but this requires more bolts. A bituminous membrane across the band- joist area offers an extra layer of protection, useful in very wet or snowy regions.

Caution: Do not use aluminum flashings with pressure- treated lumber unless a durable barrier material, such as a bituminous membrane, separates the aluminum from contact with the wood.

Preferably use membrane-type flashings, G185 galvanized steel, or copper. However, copper flashings should not contact galvanized hardware or fasteners.

Also, when using a spaced ledger as shown in the sketch, the connection of ledger to building should be made using through-bolts to the building rim joist (as shown). Lag screws are not recommended.

Free-Standing Decks: an Alternative to Using a Deck Ledger to Attach a Deck to the Building

Free standing deck (C) J Wiley, Steve BlissGiven the leak and rot concerns inherent in supporting a deck with a ledger, one approach is to forgo the ledger altogether and support the deck on posts on all sides, keeping it structurally independent of the house.

In this approach, the deck may be braced to the house to help it resist racking, but all vertical loads are carried to the ground by posts, shown in the figure at left.

A conservative rule-of-thumb states that joists can cantilever one-fourth of their total length, assuming that the cantilevered end is not carrying any loads other than the normal uniform floor loading.

The cost of this deck design alternative will be higher than a deck attached to the building using the deck ledger board approach (above), because of the added labor and materials for:

  • an additional set of deck piers and posts to support the deck close to the building
  • additional bracing below the deck to avoid racking (such as the 2x4 angle brace shown in the sketch).

-- Adapted with permission from Best Practices Guide to Residential Construction.

Also see DECK FLASHING LEAKS, ROT Case Study for an example of an older deck with rot and collapse due to improper construction and missing building flashing.
